Purchase EN5337QI, In-stock EN5337QI From SeekIC.
Part Number: EN5337QI
Description: The Enpirion EN5337QI sets a new standard of power density in low-power switching regulators. The total solution footprint is 75 mm2, w...
- Table of contents:
EN5337QI
-
Suppliers
DataSheet
General Description
EN5337QI General Description
The Enpirion EN5337QI sets a new standard of power density in low-power switching regulators. The total solution footprint is 75 mm2, without compromising efficiency. The input synchronization feature makes the EN5337QI a good solution for systems that are sensitive to beat tones. Requiring as few as six external components, the EN5337QI makes regulator design a breeze.
A complete power system-on-a-chip (PowerSoC), the EN5337QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 4 mm x 7 mm package. The 1.85 mm profile and small footprint enables the use of this part where space is at a premium. The EN5337QI utilizes an external resistor divider to set the output voltage to any user defined value.
EN5337QI Maximum Ratings
EN5337QI Features

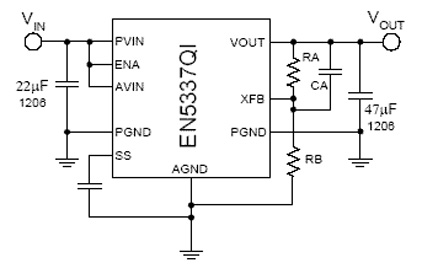

EN5337QI Typical Application
The EN5337QI is an excellent choice for applications that are sensitive to noise, voltage ripple, and beat frequencies
EN5337QI Connection Diagram
