Part Number: EP5352QI



MFG: ENPIRION



D/C: 2007

Description: Tiny Solution Footprint Low Part Count Simple Layout, Easy Design Excellent Transient Response


Urgent Purchase

EP5352QI General Description


  • Tiny Solution Footprint
  • Low Part Count
  • Simple Layout, Easy Design
  • Excellent Transient Response

    • EP5352QI Features

  • Integrated Inductor
  • 500 mA continuous output current
  • 2.4 V to 5.5 V input range
  • Up to 95% peak efficiency
  • Excellent transient response, low ripple
  • Requires two MLCC filter capacitors
  • 3-pin VID output voltage programming
  • 4 mm x 5 mm x 1.1 mm package
  • Fully RoHS compliant and Pb-free manufacturing line compatible

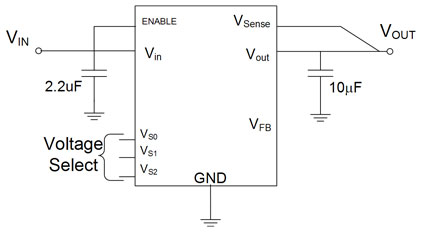

    • EP5352QI Typical Application

    The Enpirion EP5352QI represents a revolution in low-power switching converters. The total solution footprint is 36mm2, without compromising efficiency. Requiring two external components, the EP5352QI makes regulator design a breeze.

    A complete power system-on-a-chip (PowerSoC), the EP5352QI integrates power switches, Inductor, gate drive, controller, and loop compensation in a tiny 5 mm x 4 mm package. The 1.1mm profile and small footprint enables the use of this part where space is at a premium.

    The EP5352QI utilizes a 3-pin VID output voltage selector that allows the designer to choose one of seven pre-defined output voltage levels; or an external voltage divider can be employed to set the output voltage.

    This product is an excellent choice for low-power mobile applications such as smart-phone, personal media player or PDAs.
