Part Number: EP53A8xQI
Description: The Enpirion EP53A8xQI represents a revolution in the area of low-power switching converters. The total solution footprint is as small ...
- Table of contents:
EP53A8xQI
-
Suppliers
DataSheet
General Description
EP53A8xQI General Description
The Enpirion EP53A8xQI represents a revolution in the area of low-power switching converters. The total solution footprint is as small as 21mm2, without compromising efficiency. Requiring only two tiny MLCC capacitors, the EP53A8xQI makes switching regulator design a breeze.
A complete power system-on-a-chip (PowerSoC), the EP53A8xQI integrates power switches, inductor, gate drive, controller, and compensation in a tiny 3mm x 3mm package. The 1.1 mm profile and small footprint, enables the use of this part where space is at a premium.
The EP53A8xQI utilizes a 3-pin VID output voltage selector that allows the designer to choose one of seven pre-defined output voltage levels, or an external voltage divider can be employed to set the output voltage.
EP53A8xQI Maximum Ratings
EP53A8xQI Features
Product Highlights
- Tiny Solution Footprint
- Low Noise, Low EMI
- Simple Layout, Easy Design
- Excellent Transient Response

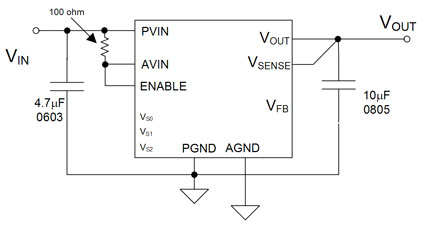

EP53A8xQI Typical Application
This product is an excellent choice for low-power mobile applications such as wireless data cards, smart-phone or personal media players.
EP53A8xQI Connection Diagram
