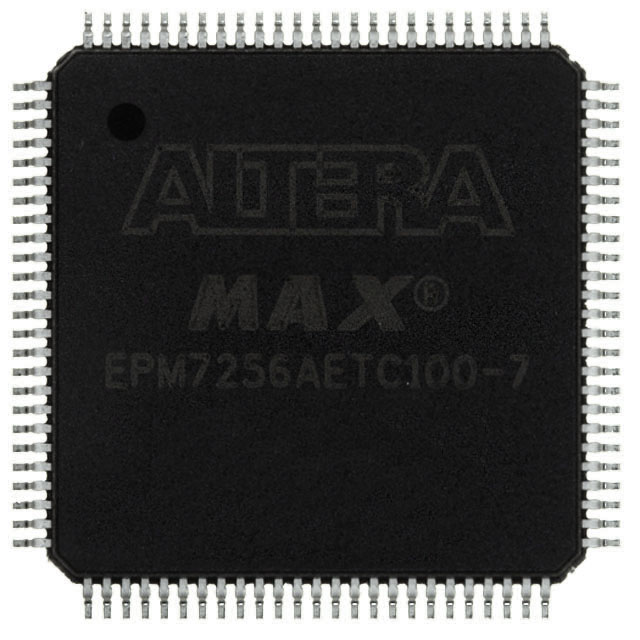

IC MAX 7000 CPLD 256 144-TQFP
EPM7256AETC144-10N: IC MAX 7000 CPLD 256 144-TQFP
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Series: | MAX® 7000A | Manufacturer: | Altera | ||
Programmable Type: | In System Programmable | Delay Time tpd(1) Max: | 10.0ns | ||
Available Set Gain : | 12 dB | Voltage Supply - Internal: | 3 V ~ 3.6 V | ||
Number of Logic Elements/Blocks: | 16 | Number of Macrocells: | 256 | ||
Number of Gates: | 5000 | Number of I /O: | 120 | ||
Operating Temperature: | 0°C ~ 70°C | Mounting Type: | Surface Mount | ||
Package / Case: | 144-LQFP | Supplier Device Package: | 144-TQFP (20x20) |
The EPM7256AETC144-10N is one member of the EPM7256AE family which is designed as the high-density, highperformance device that provides programmable speed/power optimization. It contains from 32 to 512 macrocells that are combined into groups of 16 macrocells, called logic array blocks (LABs). Each macrocell has a programmable-AND/fixed-OR array and a configurable register with independently programmable clock, clock enable, clear, and preset functions. Also it is supported by Altera development systems, which are integrated packages that offer schematic, text-including VHDL, Verilog HDL, and the Altera Hardware Description Language (AHDL)-and waveform design entry, compilation and logic synthesis, simulation and timing analysis, and device programming.
Features of the EPM7256AETC144-10N are:(1)Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1;(2)Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71;(3)Pin-compatible with the popular 5.0-V MAX 7000S devices;(4)High-density PLDs ranging from 600 to 10,000 usable gates;(5)Extended temperature range;(6)Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance;(7)PCI-compatible;(8)Bus-friendly architecture, including programmable slew-rate control;(9)Open-drain output option;(10)Programmable macrocell registers with individual clear, preset, clock, and clock enable controls.
The absolute maximum ratings of the EPM7256AETC144-10N can be summarized as:(1)Supply voltage:0.5 to 4.6 V;(2)DC input voltage:2.0 to 5.75 V;(3)DC output current, per pin:25 to 25 mA;(4)Storage temperature:65 to 150 °C;(5)Ambient temperature:65 to 135 °C;(6)Junction temperature: 135 °C. If you want to know more information such as the electrical characteristics about the EPM7256AETC144-10N, please download the datasheet in www.seekic.com or www.chinaicmart.com.
Technical/Catalog Information | EPM7256AETC144-10N |
Vendor | Altera |
Category | Integrated Circuits (ICs) |
Programmable Type | In System Programmable |
Number of Macrocells | 256 |
Number of I /O | 120 |
Number of Logic Blocks/Elements | 16 |
Operating Temperature | 0°C ~ 85°C |
Package / Case | 144-TQFP |
Features | - |
Voltage | 3.3V |
Memory Type | EEPROM |
Delay Time tpd(1) Max | 5.5nS |
Packaging | Tray |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | EPM7256AETC144 10N EPM7256AETC14410N 544 2059 ND 5442059ND 544-2059 |
