Part Number: EPVP6810
Description: The ePVP6810 is an 8-bit RISC type vacuum fluorescent display (VFD) controller equipped with low power...
- Table of contents:
EPVP6810
-
Suppliers
DataSheet
General Description
EPVP6810 General Description
The ePVP6810 is an 8-bit RISC type vacuum fluorescent display (VFD) controller equipped with low power consumption and high speed CMOS technology. This integrated single chip features on_chip watchdog timer (WDT), one time programming ROM (OTP), data RAM, programmable real time clock/counter, internal interrupt, power down mode, 10-bit A/D converter, IR detector, and high voltage output for VFD application.
EPVP6810 Maximum Ratings
Parameter |
Symbol |
Ratings |
Unit |
| Logic supply voltage | VDD |
-0.5 to + 6 |
V |
| Driver supply voltage | VEE |
VDD +0.5 to VDD - 45 |
V |
| Logic input voltage | VI |
-0.5 to VDD +0.5 |
V |
| VFD driver output voltage | VO |
VEE -0.5 to VDD +0.5 |
V |
| LED driver output current | IO1 |
+25 |
mA |
| VFD driver output current | IO2 |
-40 (Grid) -15 (Segment) |
mA |
| Operating ambient temperature | Topt |
-40 to +85 |
|
| Storage temperature | Tstg |
-65 to +150 |
EPVP6810 Features
`Clock source:Crystal Oscillator
`Crystal Oscillator (32.768KHz): with a external crystal
`4k x 13 on chip Program ROM.
`128 x 8 on chip data RAM
`144 x 8 general purpose registers
`16 level stack for subroutine nesting
`5 channel 8-bit counters: real time clock/counter (TCC) ,COUNTER1, COUNTER3, COUNTER4, COUNTER5
`1 channel 16-bit counter: COUNTER2
`On-chip watchdog timer (WDT)
`99.9% single instruction cycle commands
`Four operation modes
`12 interrupt source, 5 external (IR , INT1~INT4 ), 8 internal ( ADC, TCC, COUNTER1~5)
`Crystal Oscillator (32.768KHz): with a external crystal
`4k x 13 on chip Program ROM.
`128 x 8 on chip data RAM
`144 x 8 general purpose registers
`16 level stack for subroutine nesting
`5 channel 8-bit counters: real time clock/counter (TCC) ,COUNTER1, COUNTER3, COUNTER4, COUNTER5
`1 channel 16-bit counter: COUNTER2
`On-chip watchdog timer (WDT)
`99.9% single instruction cycle commands
`Four operation modes
`12 interrupt source, 5 external (IR , INT1~INT4 ), 8 internal ( ADC, TCC, COUNTER1~5)
EPVP6810 Typical Application
VFD controller

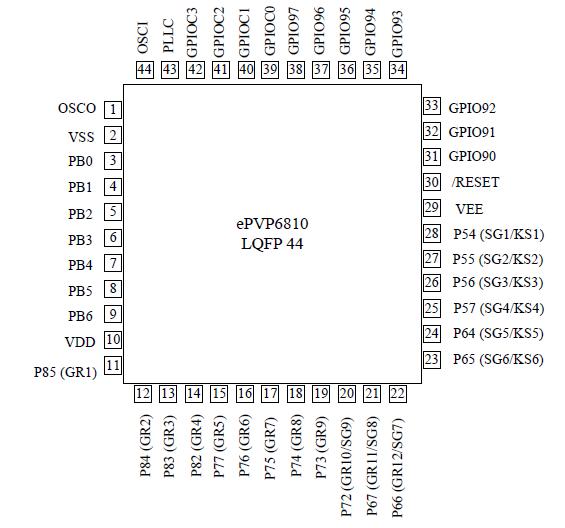

EPVP6810 Connection Diagram
EPVP6810
PDF/DataSheet Download
- Datasheet: EPVP6810
- File Size: 351509 KB
- Manufacturer: EMC [ELAN Microelectronics Corp]
- Click here to Download
