Purchase ES2D-13-F, In-stock ES2D-13-F From SeekIC.

MFG:Diodes Inc (VA)  Category:Discrete Semiconductor Products

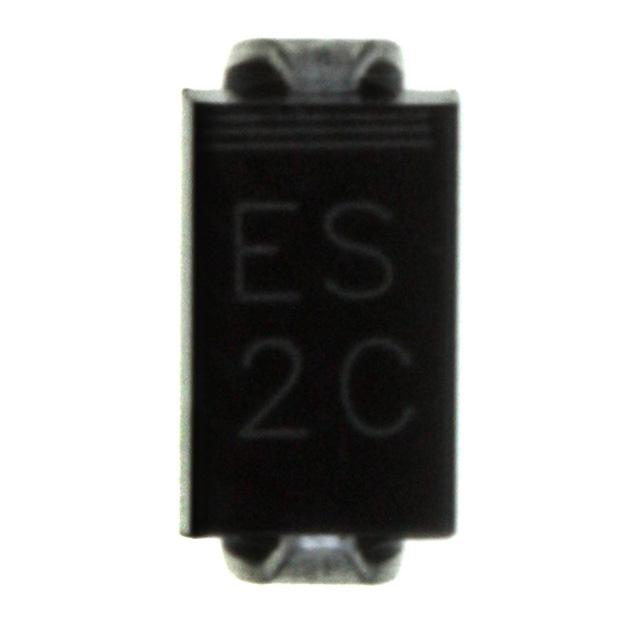

ES2D-13-F

ES2 Series Datasheet download

Five Points

Part Number: ES2D-13-F

Category: Discrete Semiconductor Products

MFG: Diodes Inc (VA)





Descriptions: DIODE SUPER FAST REC 2A 200V SMB

Price Break

1
10
100
250
500
1000

Unit Price

.86000
.66500
.57000
.53200
.47500
.38000

Extended Price

0.86
6.65
57.00
133.00
237.50
380.00

(All prices are in USD) Prices for reference only
Urgent Purchase

ES2D-13-F General Description

DIODE SUPER FAST REC 2A 200V SMB

ES2D-13-F Parameters

Technical/Catalog InformationES2D-13-F
VendorDiodes Inc (VA)
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If920mV @ 2A
Reverse Recovery Time (trr)25ns
Current - Reverse Leakage @ Vr5A @ 200V
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
PackagingCut Tape (CT)
Capacitance @ Vr, F25pF @ 4V, 1MHz
Lead Free StatusLead Free Compliant by Exemption
RoHS StatusRoHS Compliant
Other Names ES2D 13 F
ES2D13F
ES2D FDICT ND
ES2DFDICTND
ES2D-FDICT
