General Description
ES5116 General Description
TheES5116islowpowermonolithicCMOS31/2digit LCD display A/D converter. It contains the internal clock, voltage reference,seven-segmentdecoders, LCD display drivers and a back plane driver. The improved internalzenerreferencevoltagecircuitgivestheanalog common a small temperature coefficient of C typically. The high accuracy characteristics of the ES5116 perform very low linearity error and roll-over error. The high input impedance ( ) and low input leakage current (1pA typical) give the ES5116 a good application in the field of high impedance circuit measurement. The differential input and reference are suitable for measuring bridge transducer or ohms by using ratio-metric method. The dual slope conversion technique makes the ES5116 a good normal and com-monmoderejectionratio. Withasuitableoscillatorfre-quency,theES5116hasahighrejectionof50Hz,60Hz nd 400Hz line frequency noise. With single power upply, a few passive components and a LCD display, S5116 can be built as high performance panel meter. xisting Display hold, low battery flag integration and De-integrationarefouradditional features.
ES5116 Maximum Ratings
| Characteristic | Rating |
| SupplyVoltage (V+ to V- ) | 12V |
| AnalogInputVoltage (either input) | V+ to V- |
| ReferenceInputVoltage (either input) | V+ to V- |
| ClockInput | TESTtoV+ |
| PowerDissipation(plasticpackage) | 800mW |
| Operating Temperature | 0to 70 |
| Storage Temperature | -60to 160 |
| Lead Temperature(soldering,10sec) | 270 |
ES5116 Features
Guaranteedzero reading withzero input
Lowinputleakage current(1pA typical)
Internal Reference with low temperature drift ( typically)
Lownoise(15uVp-ptypical)
Direct LCD display driver-no external compo-nentsrequired
Differentialinputand voltage reference
Precisionnull detectionwithtruepolarityatzero
Internal clock circuit
Noadditional activecircuitsrequired
LowBatteryIndication
Display-Hold
Lowinputleakage current(1pA typical)
Internal Reference with low temperature drift ( typically)
Lownoise(15uVp-ptypical)
Direct LCD display driver-no external compo-nentsrequired
Differentialinputand voltage reference
Precisionnull detectionwithtruepolarityatzero
Internal clock circuit
Noadditional activecircuitsrequired
LowBatteryIndication
Display-Hold
ES5116 Typical Application
1. Digitalpanel meters
2. Digitalmulti-meters
3. Thermometers
4. Capacitance meters
5. pHmeters
6. Photo-meters
2. Digitalmulti-meters
3. Thermometers
4. Capacitance meters
5. pHmeters
6. Photo-meters

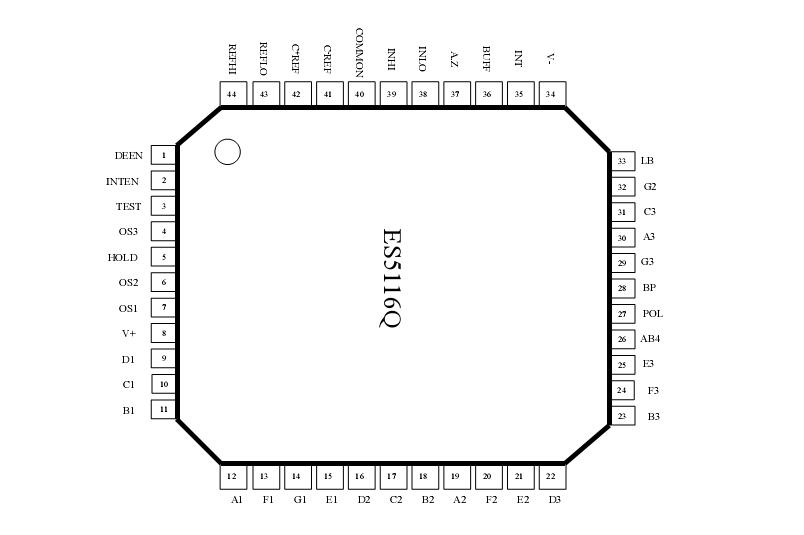

ES5116 Connection Diagram
ES5116
PDF/DataSheet Download
- Datasheet: ES5116
- File Size: 275655 KB
- Manufacturer: ETC [ETC]
- Click here to Download
