General Description
ES52110. General Description
ES52110 contains two & two 8-bit multiplying D/A converter in a single chip.This monolithic construction offers excellent DAC-to DAC matching and trzcking. The ES 52110 consists of two R-2R resistor-ladder networks, two tracking span resistors, two data latches, one input buffer, and control logic circuit, Both DACs offer excellent four quadrant multiplication characteristics with a separated reference input and feedback resistor for each DAC.
ES52110. Maximum Ratings
|
Parameter |
Min |
Type |
Max |
Unit |
|
VDD to AGND |
O |
- |
+15 |
V |
|
VDD to AGND |
O |
- |
+15 |
V |
|
AGND to DGND |
O |
- |
VDD+0.3 |
V |
|
Digital Input Vdtage to DGND |
-0.3 |
- |
VDD+0.3 |
V |
|
VPIN2, VPIN20 to AGND |
-0.3 |
- |
VDD |
V |
|
VREF, VREFB to AGND |
-25 |
- |
+20 |
V |
|
VRFBA, VRFBB to AGND |
-25 |
- |
+20 |
V |
|
Operating Temperature Range |
-55 |
- |
+125 |
|
|
Junction Temperature |
- |
- |
+150 |
|
|
Storage Temperature |
-65 |
- |
+150 |
|
|
Lead Temperature |
- |
- |
+300 |
ES52110. Features
*On-Chip Latches for Both DACs.
*+5V to +12V Operation .
*DACs Matched to 1%.
*Four Quadrant Multiplication.
*TTL/CMOS Compatibel from 5V to 12V.
*Full Temperature Operation.
*8-bit Endpoint Linearity(+1/2 LSB)
*Microprocessor Compatible.
*+5V to +12V Operation .
*DACs Matched to 1%.
*Four Quadrant Multiplication.
*TTL/CMOS Compatibel from 5V to 12V.
*Full Temperature Operation.
*8-bit Endpoint Linearity(+1/2 LSB)
*Microprocessor Compatible.
ES52110. Typical Application
*Disk Drives
*Digital Gain/Attenuation Control
*Digitally-Controlled Filter Parameters
*Digital Gain/Attenuation Control
*Digitally-Controlled Filter Parameters

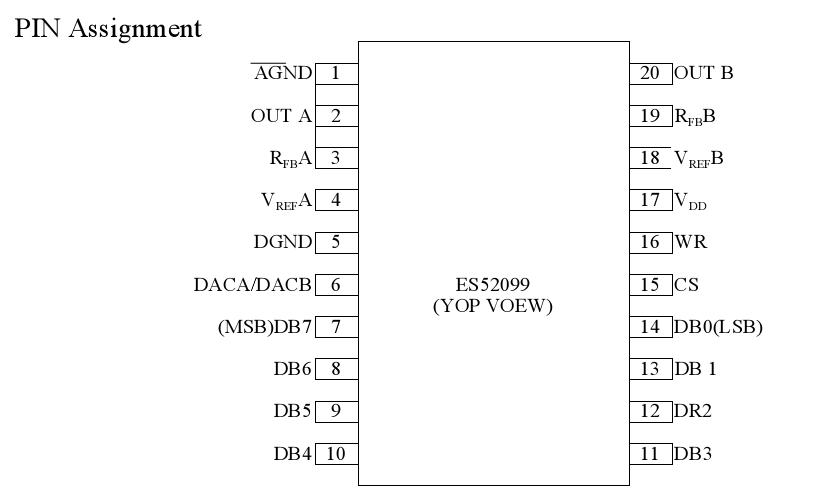

ES52110. Connection Diagram
ES5107
PDF/DataSheet Download
- Datasheet: ES5107
- File Size: 335061 KB
- Manufacturer: ETC [ETC]
- Click here to Download
