Part Number: ES62UL256
Description: The ES62UXX256 is an integrated memory device containing a low power 256 Kbit Static Random Access Memory organized as ...
- Table of contents:
ES62UL256
-
Suppliers
DataSheet
General Description
ES62UL256 General Description
The ES62UXX256 is an integrated memory device containing a low power 256 Kbit Static Random Access Memory organized as 32,768 words by 8 bits. The device is fabricated using an advanced CMOS process and NanoAmp's high-speed/low-power circuit technology. This device is also designed for very low voltage operation making it quite suitable for battery powered devices having both very low operating and standby currents. The device pinout is compatible with other standard 32k x 8 SRAMs. The ES62UXX256 comes in two speed grades (45 and 25 nsec) and two very broad voltage ranges.
ES62UL256 Maximum Ratings
| Item | Symbol | Rating | Unit |
| Voltage on any pin relative to VSS |
VIN,OUT | 0.3 to VCC +0.3 |
V |
| Voltage on VCC Supply Relative to VSS |
VCC | 0.3 to 4.0 | V |
| Power Dissipation | PD | 500 | mW |
| Storage Temperature | TSTG | 40 to 125 | |
| Operating Temperature | TA | -20 to +80 | |
| Soldering Temperature and Time | TSOLDER | 260 C, 10sec (Lead only) |
ES62UL256 Features
Operating Voltage
1.5 to 3.6 Volts
Extended Temperature Range
-20to +80
Fast Cycle Time
TACC < 25 nS @ 3V
Very Low Operating Current
ICC < 0.8 mA typical at 2V, 1 Mhz
Very Low Standby Current
ISB = 50 nA typical
1.5 to 3.6 Volts
Extended Temperature Range
-20to +80
Fast Cycle Time
TACC < 25 nS @ 3V
Very Low Operating Current
ICC < 0.8 mA typical at 2V, 1 Mhz
Very Low Standby Current
ISB = 50 nA typical

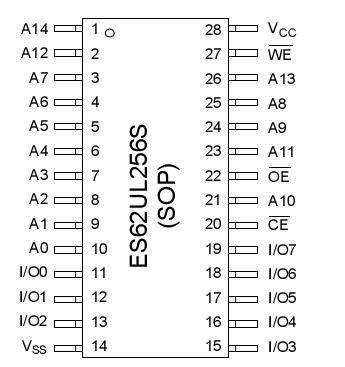

ES62UL256 Connection Diagram
ES62UL256
