Features:

MINIMUM HYSTERESIS VOLTAGE AT EACH
   INPUT: 0.3V
OUTPUTCURRENT :15mA
LARGESUPPLYVOLTAGERANGE : + 10Vto
   +35V
INTERNALTHERMALPROTECTION
INPUT AND OUTPUT CLAMPING PROTEC-
   TIONDIODES.


Pinout

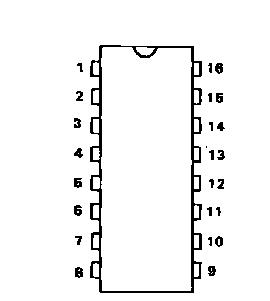

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 45 V
VID Differential Input Voltage 45 V
VI Input Voltage 0.7 to +45 V
IO (max) Output Current Internally Limited mA
Ptot Power Dissipation Internally Limited W
Top Operating Ambient Temperature Range 25 to +85
Tstg Storage Temperature Range 40 to +150



Description

TheESM1602B is aquad ruplecompar at or intented to provide an interfacebetween signal processing and transmitting lines in very noisy industrial sur- roundings.


Output of each compar ESM1602B at or,used asline driver,sup- pliesa constantcurrent(PNPoutputstage)andis specially well protected against powerful overvol- tages.The open collector output circuit allows the connectionofseveralcomparatorstoasingletrans- mittingline.


The ESM1602B can operateas receiver on a line transmitting noisy high-voltagesignals. Hysteresis effect, internally implemented on inputs of each comparatorprovidesan excellentnoise immunity. In addition, each input is also protected against overvoltages.

The ESM1602B can operatein a wide supplyvol- tage range (standard operational amplifier ± 15 V supplyor single+ 12 V or + 24 V suppliesusedin industrialelectronicsets).


Moreover,internalthermal protectioncircuitry cuts out the output current of the four compar at or swhen power diss ipation be come sexcessive.
