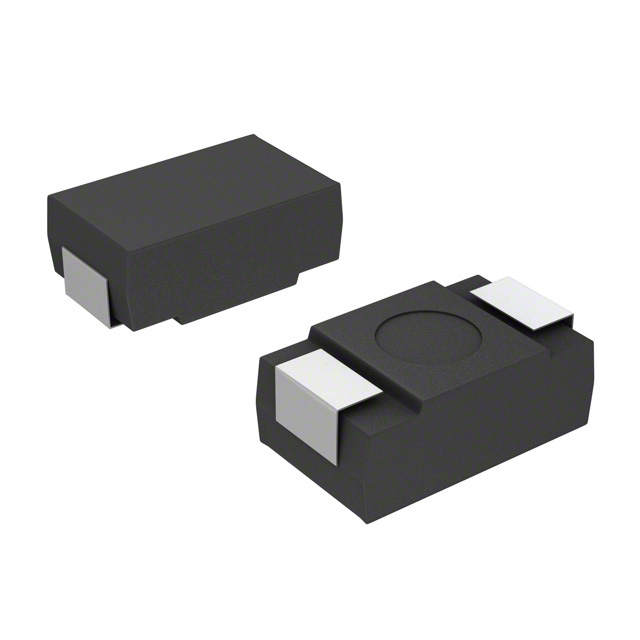

See larger image

SeekIC No. : 002909488 Detail

ESRH181M02B: CAP ALUM 180UF 2V 20% SMD

ESRH181M02B Data Sheet

US $ .95~.95 / Piece | Get Latest Price

Part Number:: ESRH181M02B
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~200

Unit Price
$.95

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ESRH evaluate
DescriptionESRH Solid Polymer Aluminum Electrolytic SMT (Surface Mount) Chip Capacitor
ESRH101M06B evaluate
US $1.16 - 1.85 / Piece

Aluminum Organic Polymer Capacitors 100UF 6.3V SMT CHIP
ESRH101M06R evaluate
US $.7 - 1.07 / Piece

Aluminum Organic Polymer Capacitors 100UF 6.3V SMT CHIP

Product Details

Quick Details

Series:	ESRH	Manufacturer:	Cornell Dubilier Electronics (CDE)
Capacitance:	180µF	Dimensions :	196 mm L x 12.5 mm W
Voltage Rating:	2V	Tolerance:	±20%
Lifetime @ Temp.:	1000 Hrs @ 105°C	Operating Temperature:	-55°C ~ 105°C
Features:	Polymer	Ripple Current:	2.5A
ESR (Equivalent Series Resistance):	15 mOhm	Impedance:	-
Mounting Type:	Surface Mount	Package / Case:	2917 (7343 Metric)
Size / Dimension:	0.287" L x 0.169" W (7.30mm x 4.30mm)	Height - Seated (Max):	0.110" (2.80mm)
Lead Spacing:	-	Surface Mount Land Size:	0.287" L x 0.169" W (7.30mm x 4.30mm)

Description

Tolerance: ±20%
Impedance: -
Mounting Type: Surface Mount
Lead Spacing: -
Lifetime @ Temp.: 1000 Hrs @ 105°C
Operating Temperature: -55°C ~ 105°C
Packaging: Bulk
Capacitance: 180µF
Features: Polymer
Package / Case: 2917 (7343 Metric)
Size / Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Ripple Current: 2.5A
Voltage Rating: 2V
ESR (Equivalent Series Resistance): 15 mOhm
Height - Seated (Max): 0.110" (2.80mm)
Manufacturer: Cornell Dubilier Electronics (CDE)
Series: ESRH

Parameters:

Technical/Catalog Information	ESRH181M02B
Vendor	Cornell Dubilier Electronics (CDE)
Category	Capacitors
Capacitance	180F
ESR (Equivalent Series Resistance)	15.0 mOhm
Features	Polymer
Lifetime @ Temp.	1000 Hrs @ 105°C
Maximum Temperature	-55°C ~ 105°C
Size / Dimension	-
Lead Spacing	-
Surface Mount Land Size	-
Mounting Type	Surface Mount
Package / Case	7343-28 (EIA)
Packaging	Bulk
Tolerance	±20%
Voltage Rating	2V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ESRH181M02B ESRH181M02B
