ET300XP3 General Description


The ET300XP3 is designed as one kind of industrial 5-port redundant fast ethernet fiber switch that requires no user setup and immediately start operating as soon as you power them up. This device can be used in wide range of applications such as serial server, field control site, optical fiber, UTP cable, digital control system and proguammable logic controller.

Features of the ET300XP3 are:(1)4 10/100 TX ports and 1 multi-mode or single-mode fiber fast ethernet switch Fast Ethernet Switch; (2)3.2Gbps Switch Fabric with excellent data exchange performance; (3)Support 1.2KV Hi-Pot isolation protection; (4)Redundant power input DC 12 to 48V; (5)Aluminum case with IP-31 grade protection; (6)-10 to 70 operating temperature for hazardous environment application.

The electrical characteristics of this ET300XP3 device can be summarized as:(1)Aggregate System Throughput: 1.49Mpps;(2)MAC Address: 1K MAC;(3)Packet Buffer: 512Kbits;(4)Transfer performance: 14,880pps for Ethernet and 148,800pps for Fast Ethernet and handle packet size from 64 to 1522Bytes;(5)Operating Temperature: -10 to 70 ;(6)Operating Humidity: 5% to 95%, (non-condensing);(7)Storage Temperature: -40 to 85 ;(8)Hi-Pot: 1.2KV for all ports and power;(9)EMI: FCC Class A, CE/EN55022.. If you want to know more information about the ET300XP3, please download the datasheet in www.seekic.com or www.chinaicmart.com .

ET300XP3 datasheet

ET375
PDF/DataSheet Download

Find ET300XP3 Suppliers

  • ·ET378
  •
  • TRANSISTOR,BJT,DARLINGTON,NPN,100V V(BR)CEO,10A I(C),TO-247VAR
  • 61440 KB
  • ET378 Datasheet Download
  • ·ET383
  • FUJI [Fuji Electric]
  • TRIPLE DIFFUSED PLANER TYPE
  • 111925 KB
  • ET383 Datasheet Download
  • ·ET393
  • FUJI [Fuji Electric]
  • BIPOLAR TRANSISTOR
  • 548567 KB
  • ET393 Datasheet Download
  • ·ET393R
  • FUJI [Fuji Electric]
  • BIPOLAR TRANSISTOR
  • 548567 KB
  • ET393R Datasheet Download

ET300XP3 Relative Products

  • ET25MD1ABE

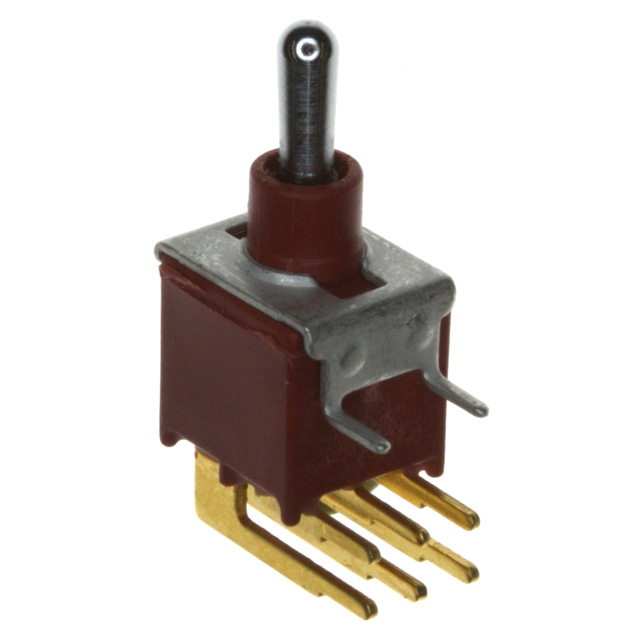

    ET25MD1ABE
