Part Number: ET6103
Description: The ET6103 F/2F decoder is a dedicated chip for three channels of magnetic strip card reader system. I...
- Table of contents:
ET6103
-
Suppliers
DataSheet
General Description
ET6103 General Description
The ET6103 F/2F decoder is a dedicated chip for three channels of magnetic strip card reader system. It has a built-in amplification circuitry and very wide data detection range of card swipe speeds from 200 to 12,000 bits per second. It is a multifunction chip with excellent performance and low cost for use in receiving and recovering F2F encoded data.
ET6103 Maximum Ratings
| ABSOLUTE MAXIMUM RATINGS (NON OPERATING) PARAMETER |
SYMBOL |
MIN |
MAX |
NOTE |
| DC Supply Voltage |
VDD |
-0.5V |
7.0V |
|
| Input Pin Voltage |
Vin |
VSS-0.5V |
VDD+0.5V |
|
| Input Pin Capacitance |
Cin |
10pF |
||
| Storage Temperature |
Tstrg |
-55 |
150 |
|
| Lead Temperature |
Tlead |
260 |
||
| Lead Time |
10 sec |
|||
| Humidity |
5% |
85% |
||
| Electronic Discharge |
±2000V |
1) |
ET6103 Features
`Triple tracks for F/2F decoded magnetic stripe
`Speed range: 200 BPS to 12,000 BPS (bits per second)
`Built-in operational amplification circuitry
`Power down mode for stand-by control
`Supporting 75/210 BPI (bit per inch) recording density
`Low cost, high quality design
`Lower power consumption
`Three modes for RCP Active Duty Cycle Time select width: 25%, 50% and 75%
`Ignore start bit selectable for 4 or 8 bits
`Wide operation voltage range ( VDD : 2.5V ~5.0V )
`Wide operation temperature range ( Ta : -10 ~ +75)
`Package: LQFP48
`Speed range: 200 BPS to 12,000 BPS (bits per second)
`Built-in operational amplification circuitry
`Power down mode for stand-by control
`Supporting 75/210 BPI (bit per inch) recording density
`Low cost, high quality design
`Lower power consumption
`Three modes for RCP Active Duty Cycle Time select width: 25%, 50% and 75%
`Ignore start bit selectable for 4 or 8 bits
`Wide operation voltage range ( VDD : 2.5V ~5.0V )
`Wide operation temperature range ( Ta : -10 ~ +75)
`Package: LQFP48
ET6103 Typical Application
·Magnetic stripe card reader (MSR)
·Credit Card Terminal
·Hand held device with card reader
·Boarding Pass Reader
·POS keyboard with card reader
·Access control and security control
·The ET6103 chip is suited for 1,2,3 channels of magnetic strip card reader system.
·Credit Card Terminal
·Hand held device with card reader
·Boarding Pass Reader
·POS keyboard with card reader
·Access control and security control
·The ET6103 chip is suited for 1,2,3 channels of magnetic strip card reader system.

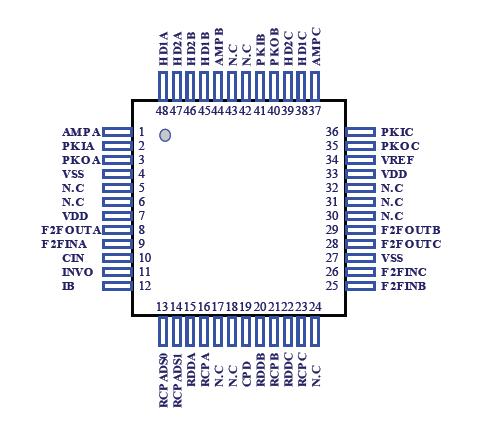

ET6103 Connection Diagram
ET6103
PDF/DataSheet Download
- Datasheet: ET6103
- File Size: 375244 KB
- Manufacturer:
- Click here to Download
