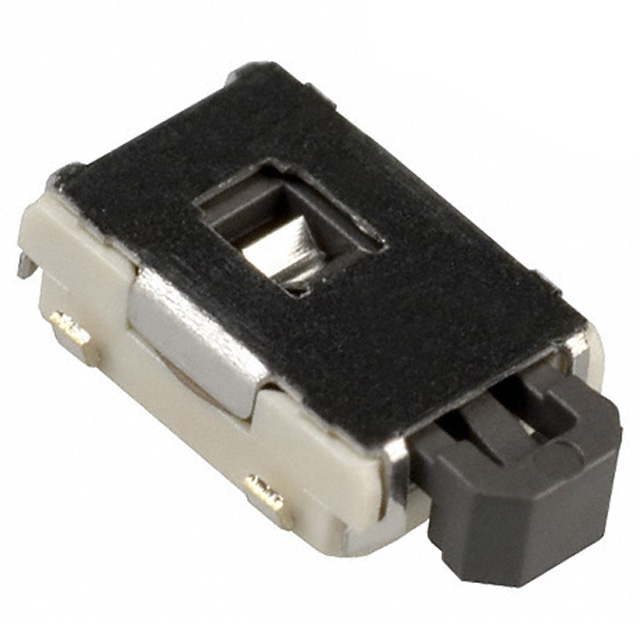

Tactile & Jog Switches Slim Type side-push Light Touch Switch
EVQ-PSC02K: Tactile & Jog Switches Slim Type side-push Light Touch Switch
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Current Rating : | 50 mA | Voltage Rating DC : | 12 V |
| Illumination : | Not Illuminated |
| Technical/Catalog Information | EVQ-PSC02K |
| Vendor | Panasonic - ECG (VA) |
| Category | Switches |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Mounting Type | Surface Mount |
| Operating Force | 160gf |
| Orientation | Right Angle |
| Outline | 6.10mm x 4.00mm |
| Switch Function | Off-Mom |
| Illumination | Non-Illuminated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | EVQ PSC02K EVQPSC02K P12318SCT ND P12318SCTND P12318SCT |
