Part Number: EZ1083B









Description: The EZ1083 series of high performance positive voltage regulators are designed for use in applications requiring low dr...


Urgent Purchase

EZ1083B General Description


The EZ1083 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at full rated current. Additionally, the EZ1083 series provides excellent regulation over variations in line, load and temperature.

Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The EZ1083 has both fixed and adjustable voltage options, while the EZ1083B is adjustable only for cost sensitive applications. These devices are available in the popular TO-220 package.

EZ1083B Maximum Ratings

Parameter Symbol Maximum
Input Voltage Supply VIN 7 V
Power Dissipation PD Internally
Limited		 W
Thermal Resistance
Junction to Case
 JC 2
 °C/W
Thermal Resistance
Junction to Ambient
 JA 50 °C/W
Operating Junction
Temperature Range		 TJ 0 to 125
 °C
Storage Temperature Range TSTG -65 to 150 °C
Lead Temperature (Soldering) 10 Sec TLEAD 260 °C

EZ1083B Features

• Low dropout performance, 1.3V max. for EZ1083, 1.45V max. for EZ1083B
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1083B)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1083)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 package

EZ1083B Typical Application

• High current microprocessor supplies
• Post regulators

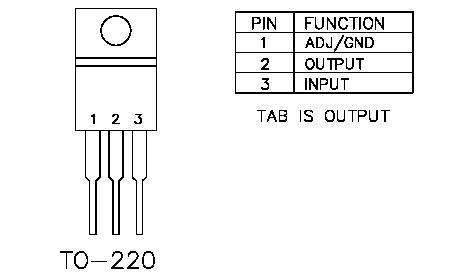

EZ1083B Connection Diagram

EZ1083B Connection Diagram

EZ1083B datasheet

EZ1083B
PDF/DataSheet Download
