EZ1087
-
Suppliers
DataSheet
General Description
EZ1087 General Description
The EZ1087 5.0A voltage regulator is a monolithic integrated circuit designed for use in applications requiring a well regulated positive output voltage with low input-output differential voltage requirements and where remote sensing of the output voltage is desired to compensate for connector, wiring and pc board trace resistances or other voltage losses. Other outstanding features include full power usage up to 5.0A of load current, internal current limiting, and thermal shutdown. Specifications guarantee 3.30 VDC output from a 4.75 VDC input.
EZ1087 Maximum Ratings
| Parameter | Symbol | Maximum | Units |
| Input Voltage Supply | VIN | 7 | V |
| Sense Pins Differential Voltage |
V+S - V-S | 4 | V |
| Sense Pin Voltage Range |
VSP | Note 1 | V |
| Power Dissipation | PD | Internally Limited |
W |
| Thermal Resistance Junction to Case |
JC | 2.5 |
°C/W |
| Thermal Resistance Junction to Ambient |
JA | 50 |
°C/W |
| Operating Junction Temperature Range |
TJ | 0 to 125 |
°C |
| Storage Temperature Range | TSTG | -65 to 150 | °C |
| Lead Temperature (Soldering) 10 Sec | TLEAD | 260 | °C |
EZ1087 Features
• Low dropout performance, 1.3V max.
• Kelvin remote sense inputs
• Line regulation typically 0.015%
• Load regulation typically 0.1%
• 5-pin TO-220 package
• Kelvin remote sense inputs
• Line regulation typically 0.015%
• Load regulation typically 0.1%
• 5-pin TO-220 package
EZ1087 Typical Application
• GTL+ bus supplies

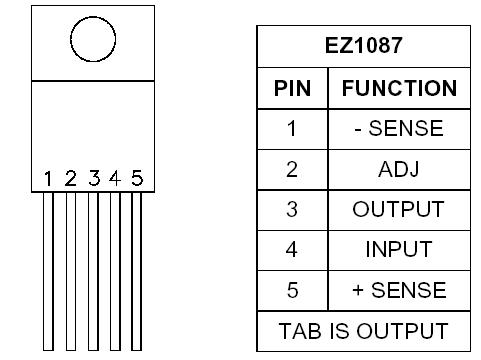

EZ1087 Connection Diagram
EZ1087
PDF/DataSheet Download
- Datasheet: EZ1087
- File Size: 82086 KB
- Manufacturer: SEMTECH [Semtech Corporation]
- Click here to Download
