Part Number: EZ1585D





Package Cooled: 7850

D/C: SEMTECH

Description: The EZ1585D is a high performance positive voltage regulator designed for use in applications requiring low dropout per...


Urgent Purchase

EZ1585D General Description


The EZ1585D is a high performance positive voltage regulator designed for use in applications requiring low dropout performance at full rated current. Additionally, the EZ1585D provides excellent regulation over variations in line, load and temperature.

Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The EZ1585D has tight tolerance on reference voltage, ±1% at 25°C and ±1.5% over line, load and temperature, as well as a 6.0A maximum current. The EZ1585D is a three terminal regulator with adjustable output voltage available in the popular TO-220 package.

EZ1585D Maximum Ratings

Parameter Symbol Maximum
Input Voltage Supply VIN 7 V
Power Dissipation PD Internally
Limited		 W
Thermal Resistance
Junction to Case
Control
Power		 JC 0.7
3.0
 °C/W
Thermal Resistance
Junction to Ambient		 JA 50 °C/W
Operating Junction
Temperature Range		 TJ 0 to 125
 °C
Storage Temperature Range TSTG -65 to 150 °C
Lead Temperature (Soldering) 10 Sec TLEAD 260 °C

EZ1585D Features

• Low dropout performance, 1.3V max.
• Full current rating over line and temperature
• Fast transient response
• ±1.5% total output regulation over line, load and temperature
• Adjust pin current max. 100µA over temperature
• Adjustable output voltage
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 package

EZ1585D Typical Application

• Pentium® Processor supplies

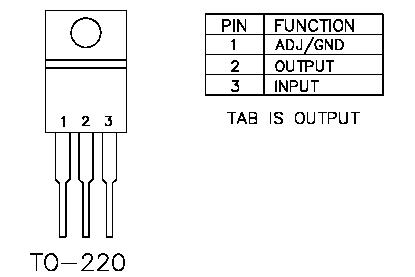

EZ1585D Connection Diagram

EZ1585D Connection Diagram
