Product Details

Description



Features:

• Low Timing Error vs. Duty Cycle & Frequency
• Low Channel to Channel Skew
• Small Footprint (64 MQFP Package,
   14 mm X 14 mm Body)


Application

• Test Equipment

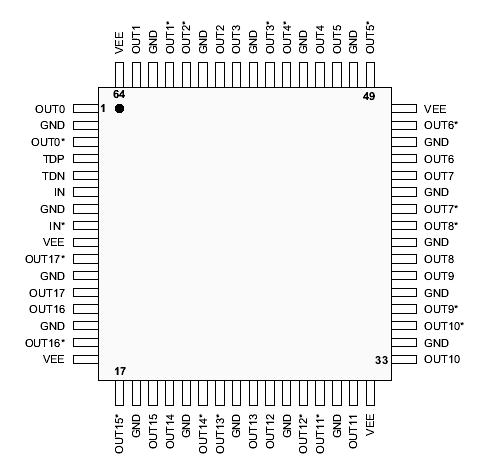

Pinout

Connection Diagram


Specifications

Parameter Symbol Min Typ Max Units
Total Analog Power Supply GND-VEE -7.0   0 V
Digital lnputs IN/IN* VEE-.5   GND+.5 V
Ambient Operating Temperature TA     +125
Storage Temperature   -55   +150
Junction Temperature TJ -65   +150
Soldering Temperature       260



Description

The Edge118 is a fully differential 1:18 clock spreader. Manufactured in a high performance bipolar process,the Edge118 is designed to accurately fan out a multitude of clock signals with low channel to channel skew.
