Part Number: FA7617CP



MFG: FAUIJ (og stock)

Package Cooled: DIP-8

D/C: 03+



Urgent Purchase

FA7617CP Maximum Ratings

Item
Symbol
Rating
Unit
FA7610C
FA7612C/17C
Supply voltage
VCC
22
22
V
Reference voltage output current
IOR
5
5
mA
Output current
IO
50
80
mA
Total power dissipation
Pd
400
400
mW
Operating temperature
Topr
20 to +85
20 to +85
C
Storage temperature
Tstg
40 to +150
40 to +150
C

FA7617CP Features

* For flyback transformer-type power-supply circuit (maximum
   output duty = 67% typical)
* Open collector output
* PWM-type switching power supply control
* Low-voltage operation (VCC = 3.6 to 22V)
* Latch-mode short-circuit protection function (no malfunction
   by noise)
* Soft-start function
* Undervoltage lockout function
* One capacitor shared for short circuit protection and for soft-
   start to minimize the number of external discrete components

FA7617CP Typical Application

* Battery power supply for portable equipment

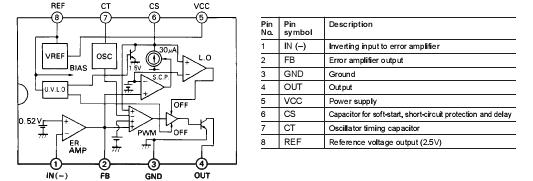

FA7617CP Connection Diagram

FA7617CP Connection Diagram

FA7617CP datasheet
