Part Number: FA7630CP



MFG: FA

Package Cooled: DIP



Description: The FA7630CP(E) is dual channel PWM-type switching power supply control IC.This IC can drive Pch-MOSFET directl...


Urgent Purchase

FA7630CP General Description


The FA7630CP(E) is dual channel PWM-type switching power supply control IC.

This IC can drive Pch-MOSFET directly and is optimum for large power DC-DC converter.

This IC has all the necessary protection functions for a power MOSFET.  It is optimum for a portable equipment power supply which uses low-voltage input to output comparably large power.

FA7630CP Maximum Ratings

Item
Symbol
Rating
Unit
Supply voltage
VCC
22
V
Reference voltage output current
IOUT
500
mA
Output sink current
Pd
650
mA
Total power dissipation
TJ
125
mW
Operating temperature
Topr
20 to +85
C
Storage temperature
Tstg
40 to +150
C

FA7630CP Features

* Dual channel PWM-type switching power supply control REF B
* 2.6% (V ) and 3% (V ) reference voltage
* Low voltage operation (Vcc: 5 to 20V)
* Drive circuit for connecting a Pch-MOSFET
* Overload cutoff circuit with timer latch circuit
* Soft start circuit
* Undervoltage lockout function (UVLO)
* Pulse-by-pulse overcurrent limiting function
* Output ON/OFF control function for each channel
* Master-slave synchronized operation without external components
* Maximum operating frequency is 500kHz

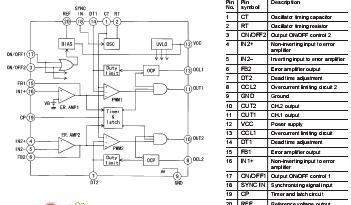

FA7630CP Connection Diagram

FA7630CP Connection Diagram

FA7630CP datasheet

FA7630CP
PDF/DataSheet Download
