FAN1086

Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223, TO-263, and TO-252 packages• Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5VApplication• Active SCSI terminat...

product image

FAN1086 Picture
See larger image
SeekIC No. : 004340294 Detail

FAN1086: Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223, TO-263, and TO-252 packages• T...

FAN1086 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1086
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low dropout voltage
• Load regulation: 0.05% typical
• Trimmed current limit
• On-chip thermal limiting
• Standard SOT-223, TO-263, and TO-252 packages
• Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5V




Application

• Active SCSI terminators
• High efficiency linear regulators
• Post regulators for switching supplies
• Battery chargers
• 5V to 3.3V linear regulators
• Motherboard clock supplies




Pinout

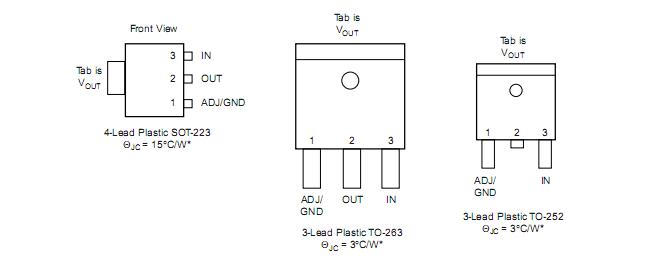

Connection Diagram




Specifications

Parameter Min. Max. Unit
VIN 7.5 V
Operating Junction Temperature Range 0 125 °C
Storage Temperature Range -65 150 °C
Lead Temperature (Soldering, 10 sec.) 300 °C




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN1086D25X Full Production RoHS Compliant $0.486 TO-252(DPAK) 3 TAPE REEL TD3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086D25
FAN1086D285X Full Production RoHS Compliant $0.486 TO-252(DPAK) 3 TAPE REEL TD3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086D285
FAN1086D33X Full Production RoHS Compliant $0.486 TO-252(DPAK) 3 TAPE REEL TD3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086D33
FAN1086DX Full Production RoHS Compliant $0.486 TO-252(DPAK) 3 TAPE REEL TD3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086D
FAN1086M Lifetime Buy RoHS Compliant N/A TO-263(D2PAK) 3 RAIL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M
FAN1086M25 Lifetime Buy RoHS Compliant N/A TO-263(D2PAK) 3 RAIL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M25
FAN1086M25X Full Production RoHS Compliant $0.486 TO-263(D2PAK) 3 TAPE REEL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M25
FAN1086M285X Full Production RoHS Compliant $0.486 TO-263(D2PAK) 3 TAPE REEL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M285
FAN1086M33 Lifetime Buy RoHS Compliant N/A TO-263(D2PAK) 3 RAIL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M33
FAN1086M33X Full Production RoHS Compliant $0.486 TO-263(D2PAK) 3 TAPE REEL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M33
FAN1086M5X Full Production RoHS Compliant $0.486 TO-263(D2PAK) 3 TAPE REEL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M5
FAN1086MX Full Production RoHS Compliant $0.486 TO-263(D2PAK) 3 TAPE REEL TS3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086M
FAN1086S25X Full Production RoHS Compliant $0.457 SOT-223 4 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086S25
FAN1086S285X Full Production RoHS Compliant $0.457 SOT-223 4 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086S285
FAN1086S33X Full Production RoHS Compliant $0.457 SOT-223 4 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086S33
FAN1086SX Full Production RoHS Compliant $0.457 SOT-223 4 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1086S
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1086 is available. Click here for more information .





Description

The FAN1086 and FAN1086-2.5,-2.85,-3.3 and -5 are lowdropout three-terminal regulators with 1.5A output currentcapability.These devices have been optimized for low voltagewhere transient response and minimum input voltage arecritical.The 2.85V version is designed specifically to beused in Active Terminators for SCSI bus.

Current limit is trimmed to ensure specified output currentand controlled short-circuit current. On-chip thermal limitingprovides protection against any combination of overload andambient temperatures that would create excessive junctiontemperatures.

Unlike PNP type regulators where up to 10% of the outputcurrent is wasted as quiescent current,the quiescent currentof the FAN1086 flows into the load, increasing efficiency.

The FAN1086 series regulators are available in the industrystandard SOT-223,TO-263,and TO-252 power packages.
