FAN1112

Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223 and TO-252 packages• Three-terminal fixed 1.2VApplication• Post regulator for switching supplies• Supply for low-...

product image

FAN1112 Picture
See larger image
SeekIC No. : 004340295 Detail

FAN1112: Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223 and TO-252 packages• Three-term...

FAN1112 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1112
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low dropout voltage
• Load regulation: 0.05% typical
• Trimmed current limit
• On-chip thermal limiting
• Standard SOT-223 and TO-252 packages
• Three-terminal fixed 1.2V




Application

• Post regulator for switching supplies
• Supply for low-voltage processors




Pinout

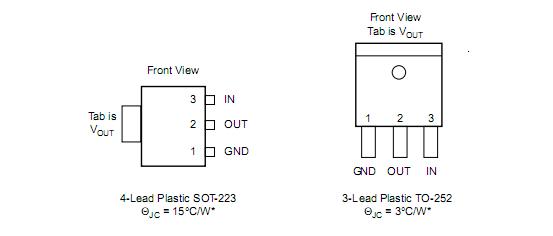

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN1112DX Full Production RoHS Compliant $0.471 TO-252(DPAK) 3 TAPE REEL TD3A Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1112D
FAN1112SX Full Production RoHS Compliant $0.471 SOT-223 4 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 1112S
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1112 is available. Click here for more information .


Parameter Min. Max. Unit
VIN 18 V
(VIN VOUT) * IOUT See Figure 1
Operating Junction Temperature Range 0 125 °C
Storage Temperature Range -65 150 °C
Lead Temperature (Soldering, 10 sec.) 300 °C





Description

The FAN1112 is a 1.2V low dropout three-terminalregulator with 1A output current capability. The device hasbeen optimized for low voltage where transient response andminimum input voltage are critical.

Current limit is trimmed to ensure specified output currentand controlled short-circuit current. On-chip thermal limitingprovides protection against any combination of overload andambient temperatures that would create excessive junctiontemperatures.

Unlike PNP type regulators where up to 10% of the outputcurrent is wasted as quiescent current, the quiescent currentof the FAN1112 fows into the load, increasing efficiency.The FAN1112 regulator is available in the industry-standardSOT-223 and TO-252 (DPAK) power packages.
