Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223, TO-220, and TO-252 packages• Three-terminal adjustable or fixed 1.8V, 2.5V, 2.85V, 3.3V, 5VApplication• Active SCSI te...
FAN1117A: Features: • Low dropout voltage• Load regulation: 0.05% typical• Trimmed current limit• On-chip thermal limiting• Standard SOT-223, TO-220, and TO-252 packages• T...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Min. | Max. | Unit |
VIN | 18 | V | |
(VIN VOUT) * IOUT | See Figure 1 | ||
Operating Junction Temperature Range | 0 | 125 | °C |
Storage Temperature Range | -65 | 150 | °C |
Lead Temperature (Soldering, 10 sec.) | 300 | °C |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
FAN1117AD18X | Full Production | RoHS Compliant | $0.279 | TO-252(DPAK) | 3 | TAPE REEL | TD3A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AD18 |
FAN1117AD25X | Full Production | RoHS Compliant | $0.279 | TO-252(DPAK) | 3 | TAPE REEL | TD3A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AD25 |
FAN1117AD33X | Full Production | RoHS Compliant | $0.279 | TO-252(DPAK) | 3 | TAPE REEL | TD3A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AD33 |
FAN1117ADX | Full Production | RoHS Compliant | $0.279 | TO-252(DPAK) | 3 | TAPE REEL | TD3A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AD |
FAN1117AS18X | Full Production | RoHS Compliant | $0.214 | SOT-223 | 4 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AS18 | |
FAN1117AS25X | Full Production | RoHS Compliant | $0.214 | SOT-223 | 4 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AS25 | |
FAN1117AS285X | Full Production | RoHS Compliant | $0.214 | SOT-223 | 4 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AS285 | |
FAN1117AS33X | Full Production | RoHS Compliant | $0.214 | SOT-223 | 4 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AS33 | |
FAN1117ASX | Full Production | RoHS Compliant | $0.271 | SOT-223 | 4 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AS | |
FAN1117AT25 | Full Production | RoHS Compliant | $0.64 | TO-220AB | 3 | RAIL | TA03A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AT25 |
FAN1117AT33 | Full Production | RoHS Compliant | $0.64 | TO-220AB | 3 | RAIL | TA03D | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 1117AT33 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FAN1117A is available. Click here for more information . |
The FAN1117A and FAN1117A-1.8, -2.5, -2.85, -3.3 and -5 arelow dropout three-terminal regulators with 1A output currentcapability. These devices have been optimized for low voltagewhere transient response and minimum input voltage arecritical. The 2.85V version is designed specifically to beused in Active Terminators for SCSI bus.
FAN1117A and FAN1117A-1.8, -2.5, -2.85, -3.3 and -5 Current limit is trimmed to ensure specified output currentand controlled short-circuit current. On-chip thermal limitingprovides protection against any combination of overload andambient temperatures that would create excessive junctiontemperatures.
Unlike PNP type regulators where up to 10% of the outputcurrent is wasted as quiescent current, the quiescent currentof the FAN1117A flows into the load, increasing efficiency.

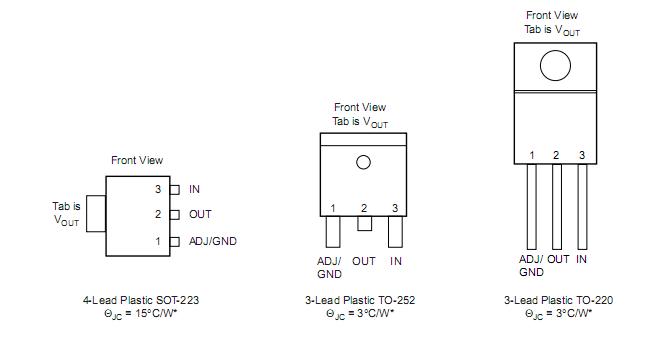

The FAN1117A series regulators are available in the industry-standard SOT-223, TO-220, and TO-252(DPAK) power packages.
