FAN1581

Features: • Ultra Low dropout voltage, 0.4V typical at 5A• 1.2V Versions available for GTL termination• Remote sense operation• Fast transient response• Load regulation: 0.05% typical• 0.5% typical initial accuracy• On-chip thermal limiting• TO-263, ...

product image

FAN1581 Picture
See larger image
SeekIC No. : 004340303 Detail

FAN1581: Features: • Ultra Low dropout voltage, 0.4V typical at 5A• 1.2V Versions available for GTL termination• Remote sense operation• Fast transient response• Load regulation...

FAN1581 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN1581
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra Low dropout voltage, 0.4V typical at 5A
• 1.2V Versions available for GTL termination
• Remote sense operation
• Fast transient response
• Load regulation: 0.05% typical
• 0.5% typical initial accuracy
• On-chip thermal limiting
• TO-263, TO-252 and TO-220 packages




Application

• Support of GTL+ bus supply
• Low voltage logic supply
• Embedded Processor supplies
• Split plane regulator
• 2.5V, and 1.8V Logic Families
• DDR Termination Supply




Pinout

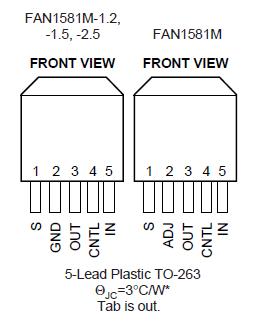

Connection Diagram




Specifications



Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN1581M12 Lifetime Buy RoHS Compliant N/A TO-263(D2PAK) 5 RAIL TS5B Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 1581M12
FAN1581M12X Full Production RoHS Compliant $0.71 TO-263(D2PAK) 5 TAPE REEL TS5B Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 1581M12
FAN1581M15X Full Production RoHS Compliant $0.71 TO-263(D2PAK) 5 TAPE REEL TS3B Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 1581M15
FAN1581M25X Full Production RoHS Compliant $0.71 TO-263(D2PAK) 5 TAPE REEL TS5B Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 1581M25
FAN1581MX Full Production RoHS Compliant $1.00 TO-263(D2PAK) 5 TAPE REEL TS5B Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&3 (3-Digit Date Code)
&K Line 2: 1581M
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN1581 is available. Click here for more information .


Parameter Min. Max. Unit
VIN 7 V
VCNTL 13.2 V
Operating Junction Temperature Range 0 125 °C
Lead Temperature (Soldering, 10 sec.) 300 °C
Storage Temperature Range -65 150 °C





Description

More DDR product information

The FAN1581, FAN1581x12, FAN1581-1.5, and FAN1581-2.5 are ultra-low dropout regulators with 5A output current capability. These devices have been optimized for low voltage applications including VTT bus termination, where transient response and minimum input voltage are critical. The FAN1581 is ideal for low voltage microprocessor applications requiring a regulated output from 1.3V to 5.7V with a power input supply of 1.75V to 6.5V. The FAN1581-1.5 offers fixed 1.5V with 5A current capabilities for GTL+ bus VTT termination. Additionally, the FAN1581x12 offers fixed 1.2V output for CPU Bus termination. The FAN1581-2.5 offers fixed 2.5V with 5A current capability for logic IC operation and processors while minimizing the overall power dissipation.

Current limit ensures controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload and ambient temperature that would create excessive junction temperatures.

The FAN1581 series regulators are available in the 5-Pin TO-263, TO-252 and TO-220 packages.
