Features: • Ultra Low Power Consumption
• 200 mV dropout voltage at 200 mA
• 75 µA ground current at 200 mA
• Enable/Shutdown Control
• SOT23-5 package
• Thermal limiting
• 300 mA peak currentApplication• Cellular Phones and accessories
• PDAs
• Portable cameras and video recorders

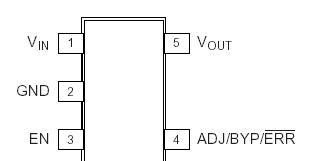

• Laptop, notebook and palmtop computersPinout
Specifications
| FAN2504S25X |
Full Production |
RoHS Compliant |
$0.444 |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGE&C Line 3: &.&O&E&V |
| FAN2504S26X |
Lifetime Buy |
RoHS Compliant |
N/A |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGG&C Line 3: &.&O&E&V |
| FAN2504S27X |
Lifetime Buy |
RoHS Compliant |
N/A |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGJ&C Line 3: &.&O&E&V |
| FAN2504S285X |
Lifetime Buy |
RoHS Compliant |
N/A |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGN&C Line 3: &.&O&E&V |
| FAN2504S28X |
Lifetime Buy |
RoHS Compliant |
N/A |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGM&C Line 3: &.&O&E&V |
| FAN2504S30X |
Lifetime Buy |
RoHS Compliant |
N/A |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAGW&C Line 3: &.&O&E&V |
| FAN2504S33X |
Full Production |
RoHS Compliant |
$0.442 |
SOT-23 |
5 |
TAPE REEL |
MA05A |
Line 1: &E&E&Y (Binary Calendar Year Coding)
Line 2: &O&EAG3&C Line 3: &.&O&E&V |
* Fairchild 1,000 piece Budgetary Pricing
|
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FAN2504 is available. Click here for more information . |
| Parameter |
Min |
Typ |
Max |
Unit |
| Power Supply Voltages |
| VIN(Measured to GND) |
0 |
|
7 |
V |
| Enable Input (EN) |
| Applied voltage (Measured to GND)2 |
0 |
|
7 |
V |
| ERR Output |
| Applied voltage (Measured to GND)2 |
0 |
|
7 |
V |
| Power |
| Dissipation3 |
Internally limited |
| Temperature |
|
|
|
|
Junction
Lead Soldering (5 seconds)
Storage
Electrostatic Discharge4 |
-65
-65
4 |
|
150
260
150
|
°C
°C
°C
kV |
Notes:
1. Functional operation under any of these conditions is NOT implied. Performance and reliability are guaranteed only if Operating Conditions are not exceeded.
2. Applied voltage must be current limited to specified range.
3. Based upon thermally limited junction temperature:
TJ (max) TA
PD=---------------------
JA
4. Human Body Model is 4kV minimum using Mil Std. 883E, method 3015.7. Machine Model is 400V minimum using JEDEC method A115-A.
DescriptionThe FAN2504/05 family of micropower low-dropout voltage regulators utilize CMOS technology to offer a new level of cost-effective performance in GSM and TDMA cellular handsets, Laptop and Notebook portable computers, and other portale devices. Features include extremely low power consumption and low shutdown current, low dropout voltage, exceptional loop stability able to accommodate a wide variety of external capacitors and the compact SOT23-5 surface-mount package. The FAN2504/05 family of products offer significant improvements over older BiCMOS designs and are pin-compatible with many popular devices. The output is thermally protected against overload.
The FAN2504 and FAN2505 devices are distinguished by the assignment of pin 4:
FAN2504: pin 4-ADJ, allowing the user to adjust the output voltage over a wide range using an external voltage divider.
FAN2504-XX: pin 4-BYP, to which a bypass capacitor may be connected for optimal noise performance. Output voltage is fixed, indicated by the suffix XX.
FAN2505-XX: pin 4-/ERR, a flag which indicates that the output voltage has dropped below the specified minimum due to a fault condition.
The standard fixed output voltages available are 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V, and 3.3V. Custom output voltages are also available: please contact your Fairchild Sales Office for information.
FAN2504 Data Sheet
