Features: • Fixed 1.0V, 1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 3.3V, 3.5V, 3.6V,3.8V and Adjustable Output•Power Good Indicator with Open Drain Output• 180mA Output Current• 100µA Ground Current•Cbypass for Low Noise Operation•Fast Enable for CDMA Applications̶...
FAN2559: Features: • Fixed 1.0V, 1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 3.3V, 3.5V, 3.6V,3.8V and Adjustable Output•Power Good Indicator with Open Drain Output• 180mA Output Current• 100µ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $.64 - .89 / Piece
DC/DC Switching Converters ANG FG Adj 1A HiEff Step-Down Converter
Parameter | Min. | Max. | Units | |
VIN to GND |
6 | V | ||
Voltage on any other pin to GND | -0.3 | VIN +0.3 | V | |
Junction Temperature (T J ) | -55 | 150 | °C | |
Storage Temperature | -65 | 150 | °C | |
Lead Soldering Temperature, 10 seconds | 300 | °C | ||
Power Dissipation (PD) | Internally Limited |
W | ||
Electrostatic Discharge (ESD) Protection (Note1) | HBM | 5 | kV | |
CDM | 1 |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
FAN2559MP10X | Full Production | Green | $0.271 | MLP | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O59T&C Line 3: &.&O&V | |
FAN2559MP13X | Full Production | Green | $0.30 | MLP | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O59X&C Line 3: &.&O&V | |
FAN2559MP15X | Full Production | Green | $0.30 | MLP | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O59V&C Line 3: &.&O&V | |
FAN2559MP18X | Full Production | Green | $0.30 | MLP | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O59O&C Line 3: &.&O&V | |
FAN2559S10X | Full Production | RoHS Compliant | $0.271 | SSOT-6 | 6 | TAPE REEL | Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O&E59T&C Line 3: &.&O&E&V | |
FAN2559S13X | Full Production | RoHS Compliant | $0.271 | SSOT-6 | 6 | TAPE REEL | Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O&E59X&C Line 3: &.&O&E&V | |
FAN2559S15X | Full Production | RoHS Compliant | $0.271 | SSOT-6 | 6 | TAPE REEL | Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O&E59V&C Line 3: &.&O&E&V | |
FAN2559S18X | Full Production | RoHS Compliant | $0.271 | SSOT-6 | 6 | TAPE REEL | Line 1: &E&E&Y (Binary Calendar Year Coding) Line 2: &O&E59O&C Line 3: &.&O&E&V |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FAN2559 is available. Click here for more information . |
The FAN2558/9 low voltage CMOS LDOs feature fixed or adjustable output voltage, 180mA load current, delayed power good output (open drain) and 1% output accuracy with excellent line and load regulation. An external bypass capacitor provides ultra-low noise operation.

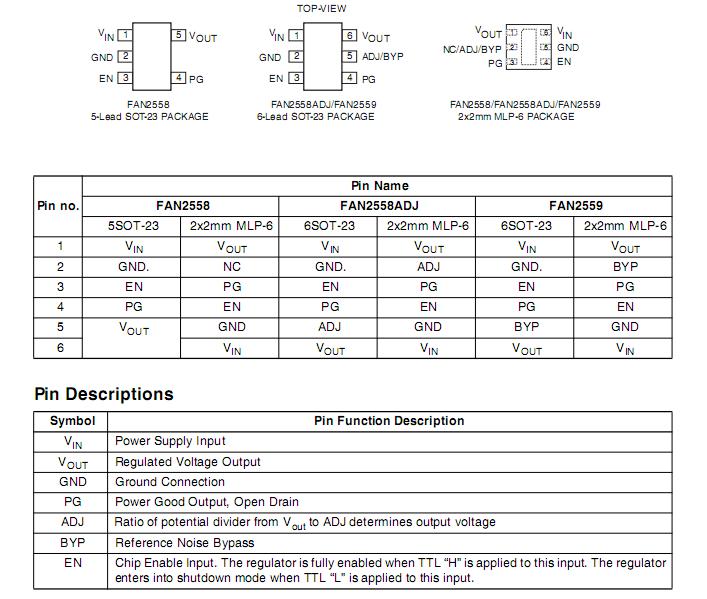

The FAN2558/9 low voltage LDOs incorporate both thermal shutdown and short circuit protection. Output is stable with a 1?F, low ESR capacitor. The FAN2558/9 family is available in 5-Lead SOT-23, 6-Lead SOT-23 and 2X2mm MLP-6 packages.
FAN2558: Fixed Output LDO with Power Good output
FAN2558ADJ: Adjustable Output LDO with Power Goodoutput
FAN2559: Fixed Output LDO with Power Good output, Low Noise
Available standard output voltages are 1.0, 1.2V, 1.3V, 1.5V, 1.8V, 2.5V, 3.3V, 3.5V, 3.6V and 3.8V. Custom output voltage options are also available.
