FAN5056MV85

DC/DC Switching Controllers SOIC-WIDE-24

product image

FAN5056MV85 Picture
SeekIC No. : 00495032 Detail

FAN5056MV85: DC/DC Switching Controllers SOIC-WIDE-24

floor Price/Ceiling Price

Part Number:
FAN5056MV85
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Voltage : 1.05 V to 1.825 V Output Current : 28 A
Number of Outputs : 2 Maximum Operating Temperature : + 70 C
Mounting Style : SMD/SMT Package / Case : SOIC-24 Wide

Description

Input Voltage :
Switching Frequency :
Duty Cycle (Max) :
Mounting Style : SMD/SMT
Number of Outputs : 2
Maximum Operating Temperature : + 70 C
Package / Case : SOIC-24 Wide
Output Voltage : 1.05 V to 1.825 V
Output Current : 28 A


Features:

• Output programmable in 25mV steps from 1.05V to 1.825V using a dynamically programmable integrated 5-bit DAC
• Controls adjustable linears for Vclock (2.5V), Vnorthbridge (1.8V) or Vagp (selectable 1.5V/3.3V), and Vadj (1.2V nominal)
• Remote sense
• Programmable Active Droop™ up to 200mV
• Drives N-Channel MOSFETs
• Overcurrent protection using MOSFET sensing
• Overvoltage protection including startup
• 85% efficiency typical at full load
• Integrated Power Good and Enable/Soft Start functions
• Meets Intel VRM8.5 specifications using minimum number of external components
• 24 pin SOIC package



Application

• Power supply for Pentium® III Platforms
• VRM for Pentium III processor
• Programmable multi-output power supply

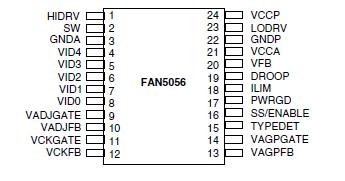

Pinout

  Connection Diagram


Specifications

Supply Voltage VCCP to GND 15V
Supply Voltage VCCA to GND 13.5V
Voltage Identification Code Inputs, VID0-VID4 VCCA
All Other Pins 13.5V
Junction Temperature, TJ 150°C
Storage Temperature -65 to 150°C
Lead Soldering Temperature, 10 seconds 300°C
Thermal Resistance Junction-to-case, 1JA 75°C/W
Note 1: Component mounted on demo board in free air.


Description

The FAN5056 is a synchronous mode DC-DC controller IC which provides a highly accurate, programmable set of output voltages for multi-voltage platforms such as the Intel Pentium III, and provides a complete solution for all Intel VRM8.5 CPU applications, and for other high-performance processors. The FAN5056 features remote voltage sensing, independently adjustable current limit, and a proprietary wide-range Programmable Active Droop™ for optimal converter transient response and VRM8.5 compliance. The FAN5056 uses a 5-bit D/A converter to dynamically program the output voltage during operation from 1.05V to 1.825V in 25mV steps. The FAN5056 uses a high level of integration to deliver load currents in excess of 28A from a 5V source with minimal external circuitry. Synchronous-mode operation offers optimum efficiency over the entire specified output voltage range. An on-board precision low TC reference achieves 0.8% voltage regulation without expensive external components. The FAN5056 includes linear regulator controllers for Vclock (2.5V),Vnorthbridge (1.8V) or Vagp (selectable 1.5V/3.3V), and Vadjustable (1.2V nominal) each adjustable with an external divider. The FAN5056 also offers integrated functions
