Purchase FAN5069, In-stock FAN5069 From SeekIC.
MFG:FSC D/C:08+
Part Number: FAN5069
MFG: FSC
D/C: 08+
Description: The FAN5069 combines a high efficiency PWM controller and aLDO (Low DropOut) linear regulator controll...
- Table of contents:
FAN5069
-
Suppliers
DataSheet
General Description
FAN5069 General Description
The FAN5069 combines a high efficiency PWM controller and aLDO (Low DropOut) linear regulator controller. Synchronousrectification provides high efficiency over a wide range of loadcurrents. Efficiency is further enhanced by using the low-sideMOSFET's RDS(ON)to sense current.
Both the linear and PWM regulator soft-start are controlled by asingle external capacitor, to limit in rush current from the supplywhen the regulators are first enabled. Current limit for PWM isalso programmable.
The PWM regulator employs a Summing-Current-Mode controlwith external compensation to achieve fast load transientresponse and provide system design optimization.
FAN5069 is offered in both industrial temperature grade (-40to +85) as well as commercial temperature grade (-10 to+85)
FAN5069 Maximum Ratings
|
Parameter |
Min. |
Max. |
Unit | |
|
VCCto PGND |
|
6 |
V | |
|
BOOT to PGND |
|
33 |
V | |
|
SW to PGND
|
Continuous |
-0.5 |
33 |
V |
|
Transient (t < 50nS, F < 500kHz) |
-3 |
33 |
V | |
|
HDRV (VBOOT --VSW) |
|
6 |
V | |
|
LDRV |
-0.5 |
6 |
V | |
|
All Other Pins |
-0.3 |
VCC +0.3 |
V | |
|
Maximum Shunt Current for VCC |
|
150 |
mA | |
|
Electrostatic Discharge Protection
(ESD) Level (Note 2) |
HBM |
2 |
|
kV |
|
CDM |
0.4 |
| ||
FAN5069 Features
General Purpose PWM Regulator and LDO Controller
Input Voltage Range: 3V to 24V
Output Voltage Range: 0.8V to 15V
VCC
- 5V
- Shunt Regulator for 12V Operation
Support for Ceramic Cap on PWM Output
Programmable Current Limit for PWM Output
Programmable Switching Frequency (200KHz to 600KHz)
RDS(ON) Current Sensing
Internal Synchronous Boot Diode
Soft-Start for both PWM and LDO
Multi-Fault Protection with Optional Auto-restart
16-pin TSSOP Package
Input Voltage Range: 3V to 24V
Output Voltage Range: 0.8V to 15V
VCC
- 5V
- Shunt Regulator for 12V Operation
Support for Ceramic Cap on PWM Output
Programmable Current Limit for PWM Output
Programmable Switching Frequency (200KHz to 600KHz)
RDS(ON) Current Sensing
Internal Synchronous Boot Diode
Soft-Start for both PWM and LDO
Multi-Fault Protection with Optional Auto-restart
16-pin TSSOP Package
FAN5069 Typical Application
PC/Server Motherboard Peripherals
- VCC_MCH (1.5V), VDDQ (1.5V) and VTT_GTL(1.25V)
Power Supply for
- FPGA, DSP, Embedded Controllers, Graphic Card Proces-sor, and Communication Processors
Industrial Power Supplies
High Power DC-to-DC Converters

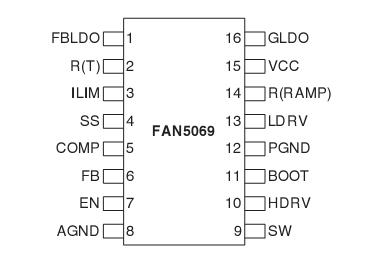

FAN5069 Connection Diagram
FAN5069
