Features:

• Low Noise Constant Frequency Operation at Heavy Load
• High Efficiency Pulse-Skip (PFM) Operation at Light Load
• Adaptive Seven Switch Configurations (1:3, 1:2, 2:3, 1:1, 3:2, 2:1, 3:1)
• 92% Peak Efficiency
• Input Voltage Range: 2.7V to 5.5V
• Output Current:3.3V, 200mA at VIN= 3.6V
• ±3% Output Voltage Accuracy
• ICC< 1A in Shutdown Mode
• 1MHz Operating Frequency
• Shutdown Isolates Output from Input
• Soft-Start Limits Inrush Current at Start-up
• Short Circuit and Over Temperature Protection
• Minimum External Component Count
• No Inductors





Application

• Cell Phones
• Handheld Computers
• Portable RF Communication Equipment
• Core Supply to Low Power Processors
• Low Voltage DC Bus
• DSP Supplies





Pinout

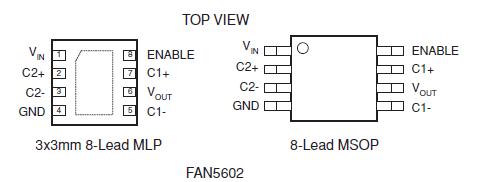

  Connection Diagram




Specifications

Parameter Min Typ Max Unit
VIN,VOUT, ENABLE Voltage to GND -0.3 6.5 V
Voltage at C1+, C1-, C2+, and C2- to GND -0.3 VIN+ 0.3 V
Power Dissipation Internally
Limited
Lead Soldering Temperature (10 seconds) 300 °C
Junction Temperature 150 °C
Storage Temperature -55 150 °C
Electrostatic Discharge (ESD) Protection (Note 2) HBM 2 kV
CDM 2




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
FAN5602MP45X Full Production Green $0.74 MLP 8 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 602 Line 3: C1 45
FAN5602MP5X Full Production Green $0.74 MLP 8 TAPE REEL Line 1: $Y (Fairchild logo)
&Z (Asm. Plant Code)
&2 (2-Digit Date Code)
&K Line 2: 602 Line 3: C1 5
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FAN5602 is available. Click here for more information .





Description

The FAN5602 is a universal switched capacitor DC/DC converter capable of step-up or step-down operation. Due to its unique adaptive fractional switching topology, the device achieves high efficiency over a wider input/output voltage range than any of its predecessors. The FAN5602 utilizes resistance modulated loop control, which produces lower switching noise than other topologies. Depending upon actual load conditions, the device automatically switches between constant frequency and pulse skipping (PFM) modes of operation in order to extend battery life. The FAN5602 produces a fixed regulated output within the range of 2.7V to 5.5V from any type of voltage source. High efficiency is achieved under any input/output voltage conditions because an internal logic circuitry automatically reconfigures the system to the best possible topology. Only two 1F bucket capacitors and one 10F output capacitor are needed. During power on soft start circuitry prevents excessive current drawn from the supply. The device is protected against short circuit and over temperature conditions.
