Product Details

Description



Features:

• Built in Power Amplifier (200mA )
• Low Stanby Current
• Incorporating 2 Circuit



Application

• CRT Monitor


Pinout

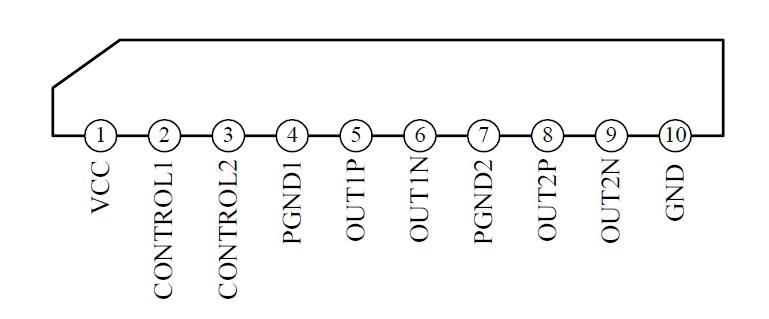

  Connection Diagram


Specifications

Parameter Symbol Value Unit Remark
Maximum Supply Voltage VCC 13.5 V Maximum Supply Voltage
Power Dissipation PD 2 W -
Operating Temperature TOPR −20 ~ +75 °C Operating Temperature
Storage Temperature TSTG −55 ~ +150 °C Storage Temperature
Thermal Resistance Rja 60 °C/W Thermal Resistance



Description

The FAN7071 is an IC to drive a landing correction coil of CRT monitor. The circuit is suitable for low power consumption design
