Purchase FAN7310, In-stock FAN7310 From SeekIC.
MFG:FSC Package Cooled:SSOP D/C:08+
Part Number: FAN7310
MFG: FSC
Package Cooled: SSOP
D/C: 08+
Description: The FAN7310 provides all the control functions for a series parallel resonant conve...
- Table of contents:
FAN7310
-
Suppliers
DataSheet
General Description
FAN7310 General Description
The FAN7310 provides all the control functions for a series parallel resonant converter and also contains a pulse width modulation (PWM) controller to develop a supply voltage. Typical operating frequency range is between 30kHz and 250kHz depending on the CCFL and the transformer's characteristics.
The FAN7310 has a patent-pending on new phase-shift control.
FAN7310 Maximum Ratings
| Characteristics | Symbol | Value | Unit |
| Supply Voltage | VCC | 5 ~ 24 | V |
| Operating Temperature Range | Topr | -25 ~ 85 | °C |
| Storage Temperature Range | Tstg | -65 ~ 150 | °C |
| Thermal Resistance Junction-Air (Note1,2) | RJA | 112 | °C/W |
| Power Dissipation | Pd | 1.1 | W |
1. Thermal resistance test board
Size: 76.2mm * 114.3mm * 1.6mm(1S0P)
JEDEC standard: JESD51-3, JESD51-7
2. Assume no ambient airflow
FAN7310 Features
• High Efficiency Single Stage Power Conversion
• Wide Input Voltage Range 5V to 24V
• Back Light Lamp Ballast and Soft Dimming
• Reduce External Components
• Precision Voltage Reference Trimmed to 2%
• ZVS full-bridge topology
• Soft Start
• PWM Control at fixed frequency
• Analog and Burst Dimming Function
• Synchronizable Switching Frequency With An External Signal
• Open Lamp Protection
• Open Lamp Regulation
• 20 Pin SSOP
• Wide Input Voltage Range 5V to 24V
• Back Light Lamp Ballast and Soft Dimming
• Reduce External Components
• Precision Voltage Reference Trimmed to 2%
• ZVS full-bridge topology
• Soft Start
• PWM Control at fixed frequency
• Analog and Burst Dimming Function
• Synchronizable Switching Frequency With An External Signal
• Open Lamp Protection
• Open Lamp Regulation
• 20 Pin SSOP

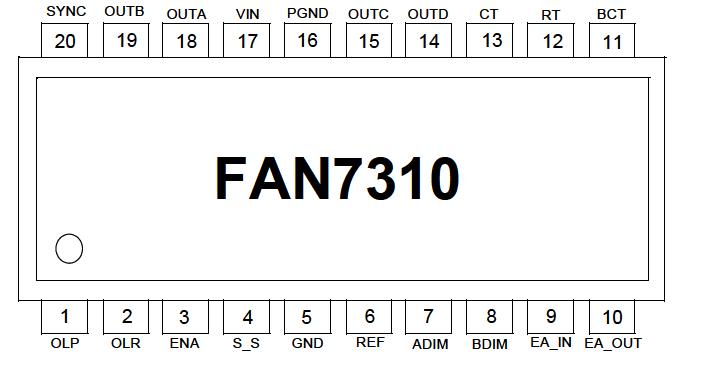

FAN7310 Connection Diagram
