Part Number: FAN7311



MFG: FAIRCHILD

Package Cooled: 06+

D/C: SOP-20P

Description: The FAN7311 provides all the control functions for a series parallel resonant converter as well as a p...


Urgent Purchase

FAN7311 General Description


The FAN7311 provides all the control functions for a series parallel resonant converter as well as a pulse width modulation (PWM) controller to develop a supply voltage. Typical operating frequency range is between 30kHz and 250kHz, depending on the CCFL and the transformer's characteristics. The FAN7311 uses a new patent-pending phase-shift control.

FAN7311 Maximum Ratings

Characteristics Symbol Value Unit
Supply Voltage VCC 5 ~ 25.5 V
Operating Temperature Range Topr -25 ~ 85 °C
Storage Temperature Range Tstg -65 ~ 150 °C
Thermal Resistance Junction-Air (Note1,2) RJA 112 °C/W
Power Dissipation Pd 1.1 W
Note:
1. Thermal resistance test board
   Size: 76.2mm * 114.3mm * 1.6mm(1S0P)
   JEDEC standard: JESD51-3, JESD51-7
2. Assume no ambient airflow

FAN7311 Features

• High-Efficiency Single-Stage Power Conversion
• Wide Input Voltage Range : 5V to 25.5V
• Back Light Lamp Ballast and Soft Dimming
• Reduces Number of Required External Components
• Precision Voltage Reference Trimmed to 2%
• ZVS Full-Bridge Topology
• Soft Start
• PWM Control at Fixed Frequency
• Analog and Burst Dimming Function
• Programmable Striking Frequency
• Open Lamp Protection
• Open Lamp Regulation
• 20-Pin SSOP

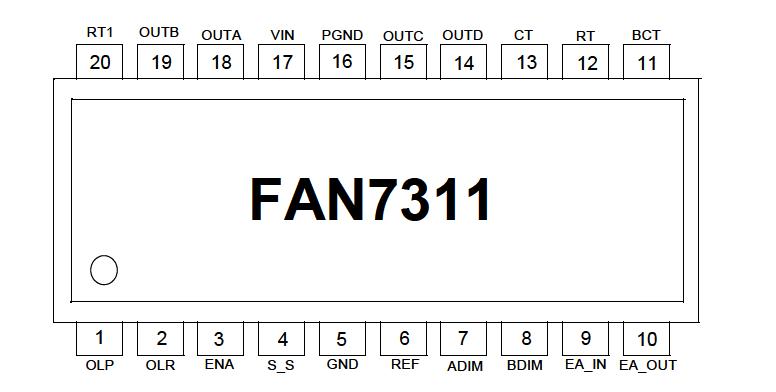

FAN7311 Connection Diagram

FAN7311 Connection Diagram
