Features:

• Wide Dimming Range
   Analog dimming ( 2.5 : 1 )
   Burst dimming ( >100 : 1 )
• High Efficiency Single Stage Power Conversion
• Wide Input Voltage Range 7.4V to 20V
• Back Light Lamp Ballast and Soft Dimming
• Few External Components
• Precision Voltage Reference Trimmed to 2%
• ZVS full-bridge topology
• Soft Start
• PWM Control at fixed frequency
• Analog, Burst Dimming Function
• Open Lamp Protection
• Open Lamp Regulation
• Short Lamp Protection
• Thermal Protection
• 20 Pin SSOP



Pinout

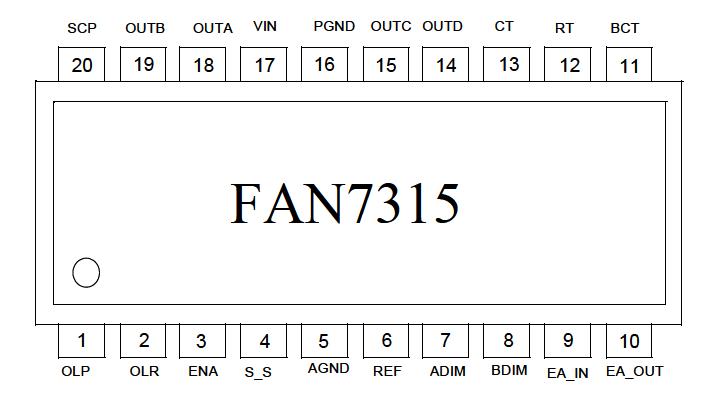

  Connection Diagram


Specifications

Characteristics Symbol Value Unit
Supply Voltage VCC 7.4 ~ 20 V
Operating Temperature Range Topr -40 ~ 85 °C
Storage Temperature Range Tstg -65 ~ 150 °C
Thermal Resistance Junction-Air (Note1,2) RJA 112 °C/W
Power Dissipation Pd 1.1 W
Note:
1. Thermal resistance test board
   Size: 76.2mm * 114.3mm * 1.6mm(1S0P)
   JEDEC standard: JESD51-3, JESD51-7
2. Assume no ambient airflow



Description

The FAN7315 provides all the control functions for a series parallel resonant converter and also contains a pulse width modulation (PWM) controller to develop a supply voltage. Typical operating frequency range is between 30kHz and 250kHz depending on the CCFL and the transformer's characteristics.
