Features: • Floating Cannel Designed For Bootstrap Operation To +600V.• Typically 350mA/650mA Sourcing/Sinking Current Driving Capability For Both Channels• Common-Mode dv/dt Noise Canceling Circuit• Extended Allowable Negative VS Swing To -9V For Signal Propagation @ VCC=V...
FAN7382: Features: • Floating Cannel Designed For Bootstrap Operation To +600V.• Typically 350mA/650mA Sourcing/Sinking Current Driving Capability For Both Channels• Common-Mode dv/dt Noise...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
FAN7382MX | Full Production | RoHS Compliant | $1.14 | SOIC | 8 | TAPE REEL | N/A | |
FAN7382N | Full Production | RoHS Compliant | $1.08 | DIP | 8 | RAIL | TBD | Line 1: 7382 Line 2: &E&Z&3 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FAN7382 is available. Click here for more information . |

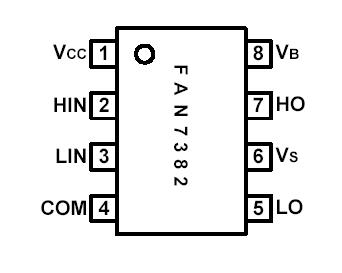

Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
High side offset Voltage |
VS |
VBS-25 |
- |
VBS+0.3 |
V |
High side floating supply voltage |
VB |
-0.3 |
625 | ||
High side floating output voltage HO |
VHO |
VS-0.3 |
VB+0.3 | ||
Low side and logic fixed supply voltage |
VCC |
-0.3 |
25 | ||
Low side output voltage LO |
VLO |
-0.3 |
VCC+0.3 | ||
Logic input voltage(HIN, LIN) |
VIN |
-0.3 |
VCC+0.3 | ||
Logic Ground |
Com |
VCC-25 |
VCC+0.3 | ||
Allowable offset voltage SLEW RATE |
dVs/dt |
50 |
V/ns | ||
Power Dissipation |
PD |
0.625 |
W | ||
Thermal resistance, junction to ambient |
Rthja |
200 |
°C/W | ||
Junction Temperature |
TJ |
150 |
°C | ||
Storage Temperature |
TS |
150 |
°C |
The FAN7382, a monolithic half-bridge gate driver IC, can drive MOSFETs and IGBTs that operate up to +600V. Fairchild's high-voltage process and common-mode noise canceling technique provides stable operation of the high-side driver under high dv/dt noise circumstances. An advanced level shift circuit allows high-side gate driver operation up to VS = -9.8 V (typ.) for VBS = 15V. The input logic level is compatible with standard TTL-series logic gates. UVLO circuits for both channels prevent malfunction when VCC and VBS are lower than the specified threshold voltage. Output drivers typically source/sink 350mA/650mA, respectively, which is suitable for fluorescent lamp ballasts, PDP scan drivers, motor controls, etc.
The FAN7382 is designed as one kind of monolithic half-bridge gate driver IC that can be used in fluorescent lamp ballast and PDP scan driver. Features of the FAN7382 are:(1)floating cannel designed for bootstrap operation to +600V.; (2)typically 350mA/650mA sourcing/sinking current driving capability for both channels; (3)common-mode dv/dt noise canceling circuit; (4)extended allowable negative VS swing to -9V for signal propagation @ Vcc=VBS=15V; (5)Vcc & VBS supply range from 10V to 20V; (6)UVLO functions for both channels; (7)TTL compatible input logic threshold levels; (8)matched propagation delay below 50nsec; (9)output in-phase with input.
The absolute maximum ratings of the FAN7382 can be summarized as:(1)high side offset voltage:VBS-25 to VBS+0.3 V;(2)high side floating supply voltage:-0.3 to 625 V;(3)high side floating output voltage HO:VS-0.3 to VB+0.3 V;(4)low side and logic fixed supply voltage:-0.3 to 25 V;(5)low side output voltage LO:-0.3 to Vcc+0.3 V;(6)logic input voltage(HIN, LIN):-0.3 to Vcc+0.3 V;(7)logic ground:Vcc-25 to Vcc+0.3;(8)allowable offset voltage SLEW RATE:50 V/ns;(9)power dissipation:0.625 W;(10)thermal resistance, junction to ambient:200 °C/W;(11)junction temperature:150 °C;(12)storage temperature:150 °C.
And the electrical characteristics of this device are:(1)Vcc and VBS supply undervoltage positive going threshold:8.2 to 10.0 V;(2)Vcc and VBS supply under-voltage V negative going threshold:7.6 to 9.6 V;(3)offset supply leakage current:50 uA;(4)quiescent VBS supply current:45 uA;(5)quiescent VCC supply current:70 uA;(6)operating VBS supply current:600 uA;(7)operating Vcc supply current:600 uA;(8)allowable negative VS pin voltage for HIN signal propagation to HO:-9.8 V;(9)output low short circuit pulsed current:650 mA. If you want to know more information such as the electrical characteristics about the FAN7382, please download the datasheet in www.seekic.com or www.chinaicmart.com .
