Part Number: FAN8001D



MFG: SOP

Package Cooled: FAI

D/C: 02+

Description: The FAN8001D is a monolithic integrated circuit, suitable for 5-ch motor driver which drives focus act...


Urgent Purchase

FAN8001D General Description


The FAN8001D is a monolithic integrated circuit, suitable for 5-ch motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor and loading motor of CD system.

FAN8001D Maximum Ratings

Parameter Symbol Value Unit
Maximum supply voltage VCC MAX 18 V
Power dissipation PD 1.7note W
Operating temperature TOPR −25 ~ +75 °C
Storage temperature TSTG −55 ~ +150 °C
Maximum current output IOMAX 1 A
NOTE:
1. When mounted on 76mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 13.6mW / °C for using above Ta=25°C
3. Do not exceed Pd and SOA (Safe Operating Area).

FAN8001D Features

• 1 phase, full-wave, linear DC motor driver
• Built-in TSD (Thermal shutdown) circuit
• Built-in 5V regulator (With an external PNP TR)
• Built-in mute circuit
• Built-in loading motor speed control circuit
• Wide operating supply voltage range: 6V~13.2V

FAN8001D Typical Application

• Compact disk player (CDP)
• Video compact disk player (VCD)
• Automotive compact disk player (CDP)
• Other compact disk media

FAN8001D Connection Diagram

FAN8001D Connection Diagram

FAN8001D datasheet

FAN8001D
PDF/DataSheet Download

  • Datasheet: FAN8001D
  • File Size: 295718 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find FAN8001D Suppliers

  • ·FAN1084
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084 Datasheet Download
  • ·FAN1084D
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084D Datasheet Download
  • ·FAN1084D15
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084D15 Datasheet Download
  • ·FAN1084D33
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084D33 Datasheet Download
  • ·FAN1084M33
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084M33 Datasheet Download
  • ·FAN1084MC
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084MC Datasheet Download
  • ·FAN1084MC15
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084MC15 Datasheet Download
  • ·FAN1084MC33
  • FAIRCHILD [Fairchild Semiconductor]
  • 4.5A Adjustable/Fixed Low Dropout Linear Regulator
  • 131764 KB
  • FAN1084MC33 Datasheet Download

Related Part Number

FAN8001D Relative Products

  • FAN8000D

    FAN8000D

    The FAN8000D is a monolithic integrated circuit, suitable for 4-CH motor driver which drives tracking actuator, focus actuator, sled motor and tray motor of CD/CD-ROM/DVD system.

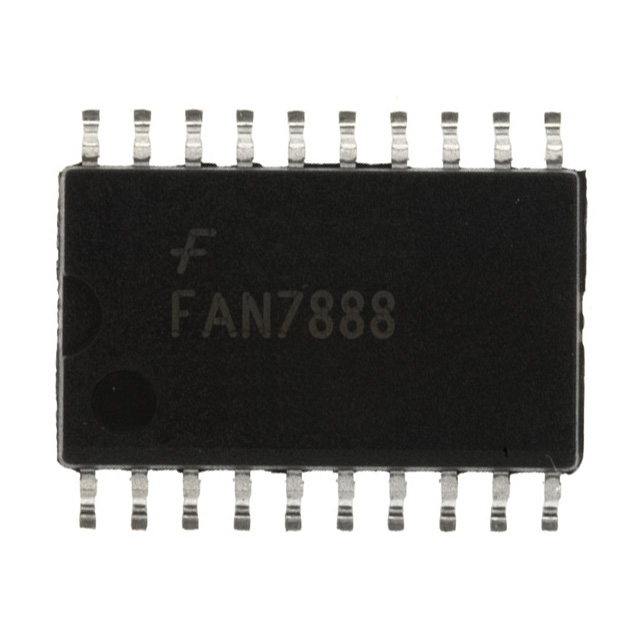

  • FAN7888MX
