Part Number: FAN8002D2



MFG: FSC

Package Cooled: SOP

D/C: 00+

Description: The FAN8002D is a monolithic integrated circuit, suitable for a 2-ch motor driver which drives the focus actuator, trac...


Urgent Purchase

FAN8002D2 General Description


The FAN8002D is a monolithic integrated circuit, suitable for a 2-ch motor driver which drives the focus actuator, tracking actuator.

FAN8002D2 Maximum Ratings

Parameter
Symbol
Value
Unit
Maximum supply voltage
VCCmax
15
V
Power dissipation
Pd
1.4note
W
Operating temperature range
Topr
-35 ~ +85
°C
Storage temperature range
Tstg
-55 ~ +150
°C
NOTE:
1. When mounted on a 76.2mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 11.2mW/°C for using above Ta = 25°C
3. Do not exceed Pd and SOA(Safe operating area).

FAN8002D2 Features

• 2-Channel BTL driver with mute circuit
• Built-in 2-regulator
• Built-in 2-comparator
• Built-in thermal shutdown circuit
• Built-in mute circuit
• Built-in switch circuit
• Built-in OP-AMP circuit
• Operating supply voltage: 4.5~13.2V
• Corresponds to 3.6V DSP

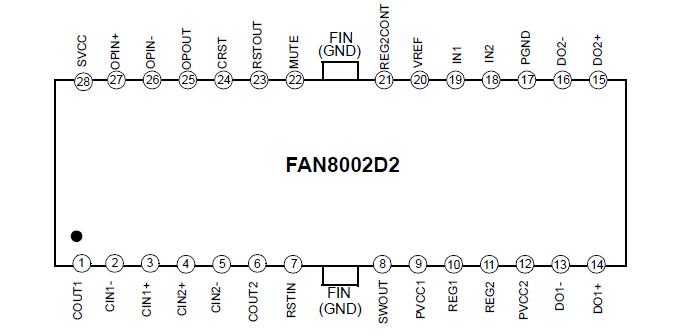

FAN8002D2 Connection Diagram

FAN8002D2 Connection Diagram
