Features:

• 3-Channel BTL (Balanced transformer-less) driver
• Built-in variable regulator with reset (Series-REG)
• Built-in thermal shutdown circuit
• Built-in power save circuit
• Built-in general OP-amp
• Operating supply voltage: 4.5V ~ 5.5V
• Corresponds to 3.3V or 5V DSP

Application

• Compact disk player
• Digital video disk player
• Compact disk ROM

Pinout

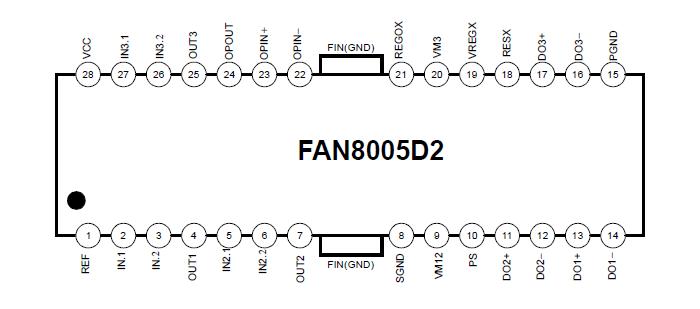

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Maximum supply voltage	V_CCmax	15	V
Power dissipation	P_d	@1.4	W
Operating temperature range	T_opr	-35 ~ +85	°C
Storage temperature range	T_stg	-55 ~ +150	°C

Notes:
1. When mounted on a 76.2mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 11.2mW / °C for using above Ta = 25°C
3. Do not exceed PD and SOA (Safe operating area).

Description

The FAN8005D2 is a monolithic integrated circuit, suitable for a 3-ch motor driver which drives focus actuator, tracking actuator, and sled motor of a CD-media system.
