FAN8008: Motor / Motion / Ignition Controllers & Drivers

FAN8008 Data Sheet

Get Latest Price

Part Number:: FAN8008
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

FAN8000D evaluate
Motor / Motion / Ignition Controllers & Drivers
FAN8000DTF evaluate
Motor / Motion / Ignition Controllers & Drivers BTL Motor Driver
FAN8001BD evaluate
Motor / Motion / Ignition Controllers & Drivers Motor Driver 4Ch BTL+1Ch DC

Product Details

Quick Details

Type :	6 Channel Motor Driver	Operating Supply Voltage :	4.5 V to 16 V
Mounting Style :	SMD/SMT	Package / Case :	QFP-48

Description

Product :
Supply Current :
Packaging :
Mounting Style : SMD/SMT
Operating Supply Voltage : 4.5 V to 16 V
Package / Case : QFP-48
Type : 6 Channel Motor Driver

Features:

• 4-CH balanced transformerless (BTL) driver
• 2-CH (forward-reverse) control DC motor driver
• Operating supply voltage (4.5V ~ 16V)
• Built-in thermal shut down circuit (TSD)
• Built-in under voltage lockout circuit (UVLO)
• Built-in over voltage protection circuit (OVP)
• Built-in mute circuit (CH1, CH2, CH3 and CH4)
• Built-in normal op-amp
• Built-in 3.3V regulator with reset

Application

• Compact disk player (CDP) with tray and changer
• Video compact disk player (VCD) with tray and changer
• Automotive compact disk player (CDP) with tray and changer
• Other compact disk media

Pinout

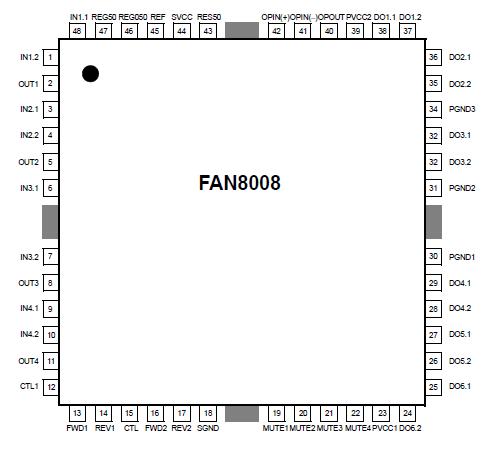

Connection Diagram

Specifications

Parameter	Symbol	Value.	Unit
Maximum supply voltage	V_CC	18	V
Power dissipation	P_D	3^note	W
Operating temperature	T_OPR	−35 ~ +85	°C
Storage temperature	T_STG	−55 ~ +150	°C
Maximum output current	I_OMAX	1	A

Description

The FAN8008 is a monolithic integrated circuit suitable for a 6-ch motor driver which drives the tracking actuator, focus actuator, sled motor, tray motor, change motor and spindle motor of the CDP/CAR-CD systems.
