FAN8010MP

Features: •Current mode control•High output current(Iomax 0.6A)•Low saturation voltage(0.3V typ)•Low voltage operation(2~6.5V)•Very low standby current( < 1uA)•Leadless miniature package(3*3*1mm3).•Selectable output current level•Available saturat...

product image

FAN8010MP Picture
See larger image
SeekIC No. : 004340514 Detail

FAN8010MP: Features: •Current mode control•High output current(Iomax 0.6A)•Low saturation voltage(0.3V typ)•Low voltage operation(2~6.5V)•Very low standby current( < 1uA)•...

FAN8010MP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8010MP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Current mode control
•High output current(Iomax 0.6A)
•Low saturation voltage(0.3V typ)
•Low voltage operation(2~6.5V)
•Very low standby current( < 1uA)
•Leadless miniature package(3*3*1mm3).
•Selectable output current level
•Available saturation mode control
•Built in brake function.
•Built in TSD


Pinout

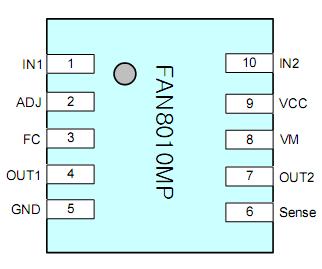

Connection Diagram


Specifications

Parameter         Symbol         Value          Unit
Maximum Power Supply Voltage         VMMAX          7.5           V
Maximum Power Supply VoNtage         VCCMAX          7.5           V
Maximum Power Supply Current         IOMAX          600           mA
Maximum Logic Input Voltage         VINMAX          7.5           V
Maximum Output Sustain Voltage         VOUTMAX          8.5           V
Maximum Power Dissipation        PdMAXNote1       0.7 / 2.5           W
Operating Temperature          TOPR       −30 ~ +80
Storage Temperature          TSTG       −55 ~ +150



Description

The FAN8010MP is designed for Mobile camera, Digi-tal still camera, and portable equipment.
