Features:

•2-Channel BTL driver with current feedback
•2-Channel BTL DC motor driver
•Built-in thermal shutdown circuit
•Built-in mute circuit
•Operating supply voltage: 4.5~13.2V


Application

1. Reference Input & Stand-by Function
•Reference input (PIN 27)
The applied voltage at the reference input pin must be between 0.8V and 6.5V, when VCC=8.5V.
•Stand-by input (PIN 28)
The following input conditions must be satisfied for the normal stand-by function.
2. Protection Function
Thermal shutdown (TSD)
If the chip temperature rises above 175, the thermal shutdown (TSD) circuit is activated and the output circuit is in the mute state, that is off state.  The TSD circuit has a temperature hysteresis of 25
3. Separation Of Power Supply
•PVCC1(PIN 9)
PVCC1 is the power supply for loading driver. The range is between 5V ~ 12V.
•PVCC2(PIN 21)
PVCC2 is the power supply for actuator drivers that include focus and tracking actuators. The range is between 5V ~ 12V
•VCC(PIN 8)
VCC pin supplies power for sled driver and signal logic part. The voltage applied to VCC must be higher than PVcc1 and PVCC2 at least 1V


Pinout

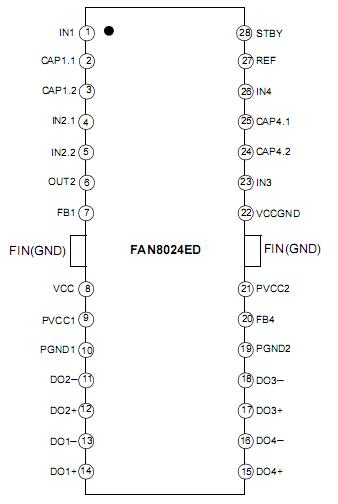

Connection Diagram


Specifications

Parameter    Symbol       Value        Unit
Maximum Supply Voltage     VCCmax         15         V
Power Dissipation     PD        1.7note         W
Operating Temperature    TOPR     -25 ~ +85
Stroage Temperature    TSTG     -55 ~ +150



Description

The FAN8024ED is a monolithic IC, suitable for 2-ch BTL DC motor drivers and 2-ch motor drivers with current feedback which drive the focus and tracking actuators of a CD media system.
