FAN8026G3

Features: • 5-CH Balanced transformerless (BTL) driver• Operating supply voltage : 4.5 V ~ 13.2V• Built-in thermal shut down circuit (TSD)• Built-in channel mute circuit• Built-in 1-OP AMPApplication• Compact disk player• Video compact disk player• C...

product image

FAN8026G3 Picture
See larger image
SeekIC No. : 004340519 Detail

FAN8026G3: Features: • 5-CH Balanced transformerless (BTL) driver• Operating supply voltage : 4.5 V ~ 13.2V• Built-in thermal shut down circuit (TSD)• Built-in channel mute circuit̶...

FAN8026G3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8026G3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5-CH Balanced transformerless (BTL) driver
• Operating supply voltage : 4.5 V ~ 13.2V
• Built-in thermal shut down circuit (TSD)
• Built-in channel mute circuit
• Built-in 1-OP AMP


Application

• Compact disk player
• Video compact disk player
• Car compact disk player
• Digital video disk player


Pinout

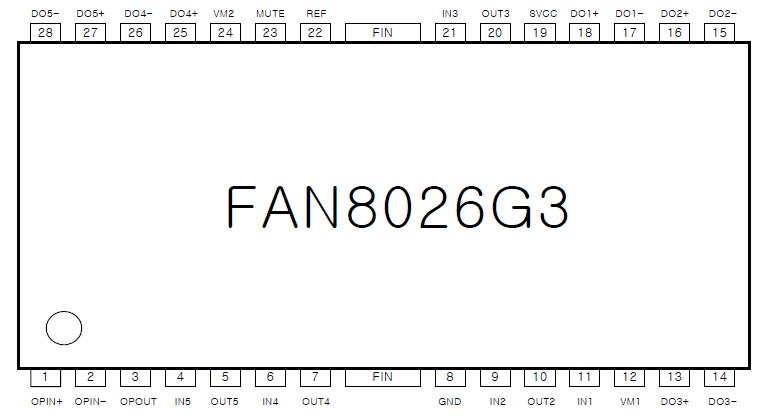

Connection Diagram


Specifications

Parameter Symbol Value Unit
Maximum supply voltage SVCC 15 V
VM1 15 V
VM2 15 V
Power dissipation PD 2.5note1,2,3 W
Operating temperature TOPR −35 ~ +85 °C
Storge temperature TSTG −55 ~ +150 °C
Notes:
1. When mounted on glass epoxy PCB (76 * 114 * 1.6mm)
2. Power dissipation is reduced at the rate of -20mW/°C for TA>25°C.
3. Do not exceed Pd and SOA(Safe Operating Area).


Description

The FAN8026G3 is a monolithic integrated circuit suitable for a 5-CH motor driver which drives a tracking actuator, a focus actuator, a sled motor, a spindle motor, and a tray motor of the CDP/CAR-CD/DVDP systems.
