Features:

• 5-CH Balanced Transformerless (BTL) Driver
• 1-CH (Forward Reverse) Control DC Motor Driver
• Operating Supply Voltage (4.5 V ~ 13.2 V)
• Built in Thermal Shut Down Circuit (TSD)
• Built in Channel Mute Circuit
• Built in Power Save Mode Circuit
• Built in TSD Monitor Circuit
• Built in 2-OP AMPs



Application

• Compact Disk Player
• Video Compact Disk Player
• Car Compact Disk Player
• Digital Video Disk Player



Pinout

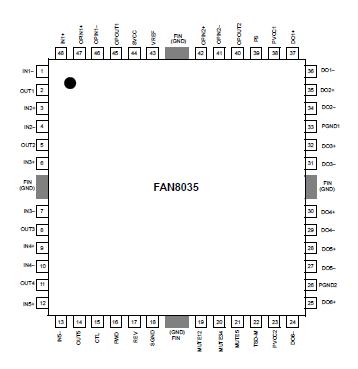

  Connection Diagram


Specifications

Parameter Symbol Value Unit
Maximum supply voltage SVCCMAX 18 V
PVCC1 18 V
PVCC2 18 V
Power dissipation PD 3note W
Operating temperature TOPR −35 ~ +85 °C
Storge temperature TSTG −55 ~ +150 °C
Maximum output current IOMAX 1 A
Notes:
   1. When mounted on 70mm * 70mm * 1.6mm PCB.
   2. Power dissipation is derated with the rate of -24mW/°C for TA>25°C.
   3. Do not exceed PD and SOA.



Description

The FAN8035 is a monolithic integrated circuit suitable for a 6-CH motor driver which drives the tracking actuator, focus actuator, sled motor, spindle motor, and tray motor of the CDP/CAR-CD/DVDP systems.
