FAN8038B

Motor / Motion / Ignition Controllers & Drivers Motor Driver 5Ch BTL+3Ch DC

product image

FAN8038B Picture
See larger image
SeekIC No. : 00534263 Detail

FAN8038B: Motor / Motion / Ignition Controllers & Drivers Motor Driver 5Ch BTL+3Ch DC

FAN8038B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8038B
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : 4 Channel Motor Drive IC Operating Supply Voltage : 13.2 V
Supply Current : 3.5 mA Mounting Style : SMD/SMT
Package / Case : QFP-44 Packaging : Tray

Description

Product :
Mounting Style : SMD/SMT
Packaging : Tray
Supply Current : 3.5 mA
Type : 4 Channel Motor Drive IC
Operating Supply Voltage : 13.2 V
Package / Case : QFP-44


Features:

•4-CH H-Bridge Driver
•Built-in DC/DC Converter Controller Circuit
•Built-in Reset Circuit
•Built-in Battery Charging Circuit
•Built-in Voltage Drop Detector
•Built-in Thermal Shutdown Circuit
•Built-in General OP-AMP
•Low Power Consumption
•Built-in Power Controller Circuit


Application

1. Mute Function
•When The  BRAKE Pin is low is normal opration (high is  CH1 mute on).
•When The  Mute2 Pin is low is normal opration (high is CH2 mute on).
•When The  Mute34 Pin is high is normal opration (low is CH3,4 mute on).
2. Vref Drop Mute (Figure 1)
•When the Voltage of the mute pin is above 1V, the mute circuit is stopped and the output circuit is.
3. Thermal Shutdown(Figure 2)
•If the chip temperature rises above 150°C, then the thermal shutdown (TSD) circuit is activated and the output circuit  will
be mute.
4. H-bridge Driver (4-Channels)
Driver input resistance is 10kΩ of  CH1, CH3, CH4 and input resistance of CH2 is 7.5kΩ
.Driver gain can obtain under -mentioned

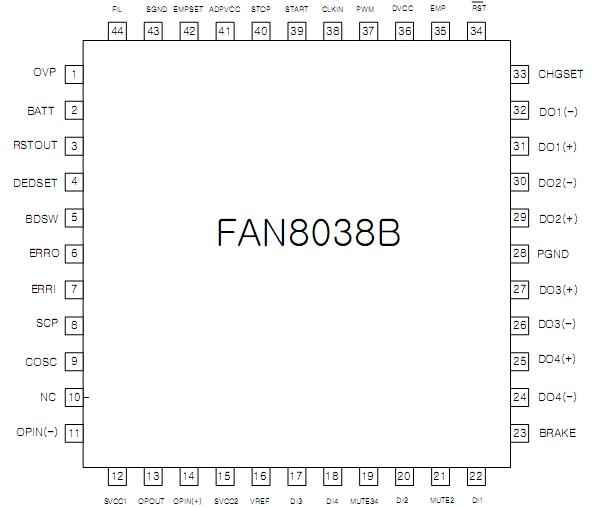

Pinout

Connection Diagram


Specifications

Parameter    Symbol       Value        Unit
Maximum Supply Voltage     VCC       13.2         V
Maximum Output Current     IO        500        mA
Power Dissipation     PD        1.0         W
Operating Temperature    TOPR     -35 ~ +85
Stroage Temperature    TSTG     -55 ~ +150



Description

FAN8038B is monolithic  IC for portable CD player.
