Product Details

Quick Details

Type :	5 Channel Motor Driver	Operating Supply Voltage :	18 V
Mounting Style :	SMD/SMT	Package / Case :	SSOPH-28
Packaging :	Tube

Description

Product :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Operating Supply Voltage : 18 V
Type : 5 Channel Motor Driver
Package / Case : SSOPH-28

Features:

• 1 Phase, Full-wave, Linear DC Motor Driver
• Built-in 5-CH Balanced TransFormerless (BTL) Driver
• Built-in thermal shut down circuit (TSD)
• Built-in Variable Regulator With Power Tr.
• Built-in Power Save Circuit
• Built-in stand by mode circuit
• Wide Operating Supply Voltage : 4.5 ~ 13.2V

Application

• Compact disk player
• Video compact disk player
• Car compact disk player
• Mixing with compact disk player and mini disk player
• DVDP

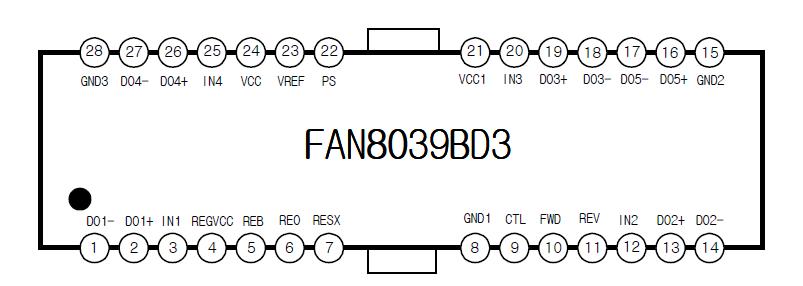

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Value	Unit
Maximum Supply Voltage	VCC	15	V
Power Dissipation	P_D	2.5^note	W
Operating Temperature	T_OPR	−35 ~ +85	°C
Storge Temperature	T_STG	−55 ~ +150	°C
Maximum output current	I_OMAX	1	A
Regulator Maximum output current	I_ROMAX	400	mA

Notes:
1. When mounted on 70mm × 70mm × 1.6mm PCB
2. Power dissipation reduces 20mW/°C for using above TA = 25°C
3. Do not exceed PD and SOA (Safe Operating Area)

Description

The FAN8039BD3 is a monolithic integrated circuit suitable for a 5-CH motor driver which drives the tracking actuator, focus actuator, sled motor, tray motor, spindle motor of the DVDP/CAR-CD systems.
