FAN8040

Features: •4-channel Balanced Transformerless (BTL) Driver•3-channels PWM input direct-coupled type include internal filters.•Separated power supply voltages(PVCC1: CH1 and CH2, PVCC2: CH3 and CH4)•Built-in input pin selection function of channel 4•Built-in OP-amplifi...

product image

FAN8040 Picture
See larger image
SeekIC No. : 004340524 Detail

FAN8040: Features: •4-channel Balanced Transformerless (BTL) Driver•3-channels PWM input direct-coupled type include internal filters.•Separated power supply voltages(PVCC1: CH1 and CH2, PV...

FAN8040 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8040
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•4-channel Balanced Transformerless (BTL) Driver
•3-channels PWM input direct-coupled type include internal filters.
•Separated power supply voltages
(PVCC1: CH1 and CH2, PVCC2: CH3 and CH4)
•Built-in input pin selection function of channel 4
•Built-in OP-amplifier
•Built-in Power Save function
•Built-in Thermal Shutdown Circuit (TSD)
•Operating ranges: 4.5~ 13.2V


Application

1. Power Save Function
•Power save function is also performed at PS (pin20). The truth table is as follows:
•When the PS (pin 20) is hige level (above 2V), the bias circuit is enable. On the other hand, when the PS(pin20) is low level (under 0.5V), the bias circuit is disabled.
•When the CAPA(pin3) is low level, the CAPA (pin25) is opened in Figure. 4.
2. TSD (Thermal Shutdown) Function
•When the chip temperature rises above 175, then the 4-channels BTL driver output circuit will be muted.
The TSD circuit has the hysteresis temperature of 25.


Pinout

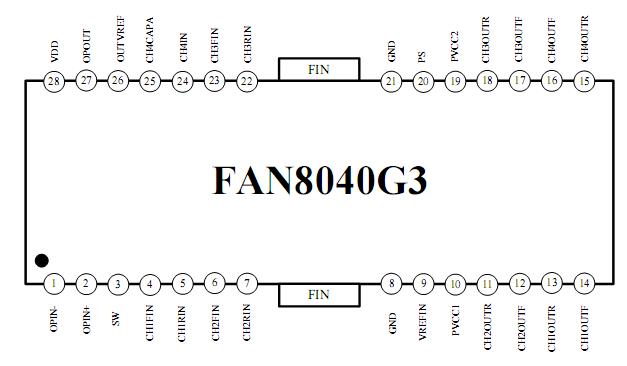

Connection Diagram


Specifications

Parameter     Symbol       Value        Unit
Supply Voltage    PVCC1, 2       15         V
Predriver Supply Voltage     VDD       15         V
Power Dissipation     PD       2.5note         W
Operating Temperature    TOPR     -25 ~ +85
Storage Temperature                   TSTG                        -55 ~ +150


Description

The FAN8040G3 is a monolithic integrated circuit, suitable for 4-channel motor driver which drives tracking actuator,focus actuator, sled motor and spindle motor of compack disk player system.
