FAN8047G3

Product :
Mounting Style : SMD/SMT
Packaging : Tube
Type : 4 Channel Motor Driver
Supply Current : 1 A
Operating Supply Voltage : 18 V
Package / Case : SSOPH-28


Features:

•4-CH Balanced transformerless (BTL) driver
•Optional input (CH4,5) for output CH4
•Operating supply voltage : 4.5 V ~ 14V
•Built-in thermal shut down circuit (TSD)
•Built-in channel mute circuit
•Built-in 3.3 volt regulator

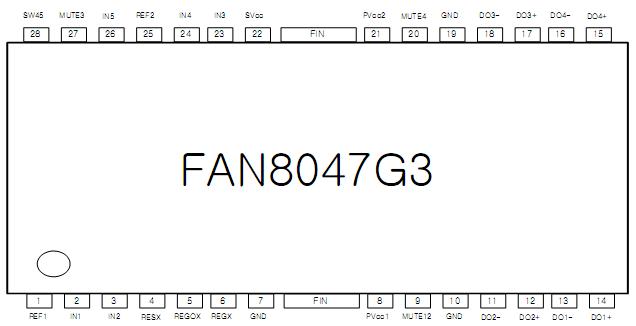

Pinout




Specifications

PARAMETER	SYMBOL	VALUE	UNIT
Maximum supply voltage	SVCCMAX	18	V
	PVCC1MAX	18	V
	PVCC2MAX	18	V
Power dissipation	PD	2.5note1,2,3	W
Operating temperature	TOPR	−35 ~ +85
Storge temperature	TSTG	−55 ~ +150
Maximum output current	IOMAX	1	A

Description

The FAN8047G3 is a monolithic integrated circuit suit-able for  a 4-ch motor driver which drives a tracking actuator, a focus actuator, a sled motor, a spindle motor, and a tray motor of the CDP/CAR-CD/DVDP systems.
