FAN8048

Features: H-Bridge PWM Driver• 4 Channels direct PWM H-bridge drivers• Digital input and direct PWM output• Internal power switches- ON state resistance : 2.0 Ω (typ.), which value added the upper and the lower switches Synchronous DC-DC Converter• Built-in step up co...

product image

FAN8048 Picture
See larger image
SeekIC No. : 004340525 Detail

FAN8048: Features: H-Bridge PWM Driver• 4 Channels direct PWM H-bridge drivers• Digital input and direct PWM output• Internal power switches- ON state resistance : 2.0 Ω (typ.), which...

FAN8048 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8048
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

H-Bridge PWM Driver
• 4 Channels direct PWM H-bridge drivers
• Digital input and direct PWM output
• Internal power switches
- ON state resistance : 2.0 Ω (typ.), which value added the upper and the lower switches Synchronous DC-DC Converter
• Built-in step up converter (VG converter)
• Built-in two synchronous step up-down converter
• Built-in short circuit protection
• Internal Switches
- Power Switch : 0.4Ω (typ.) at 500mA
-. Synchronous-Rectifier Switch : 0.4Ω (typ.) at 500mA
Others
• Built-in power-on reset circuit
• Built-in battery charge circuit
• Built-in voltage regulator control circuit
• Built-in thermal shutdown (TSD) circuit
• Buit-in channel mute circuit


Application

• Portable CD-MP3 player

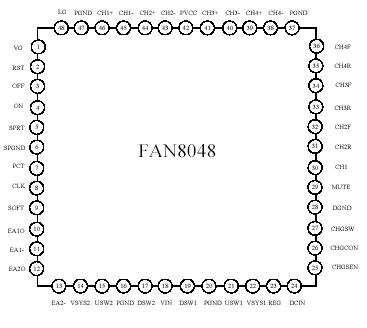

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Unit
Unit
H-bridge driver supply voltage
Predriver supply voltage
Primary side input voltage of DC-DC converter
Output voltage of DC-DC converter1
Output voltage of DC-DC converter2
AC adapter supply voltage
H-bridge driver output current
Power dissipation
Operating temperature
Stroage temperature
PVCC
VG
VIN
VSYS1
VSYS2
VDCIN
IO
PD
TOPR
TSTG
7
12
7
7
7
12
500
1.0
-30 ~ +85
-55 ~ +150
V
V
V
V
V
V
mA
W
°C
°C



Description

The FAN8048 is a monolithic integrated circuit suitable for a 4 channels direct PWM H-bridge driver which incorporates two switch-mode step up-down converter with synchronousrectification provides local microprocessor and servo IC power in portable CD players and portable devices.
