FAN8082D

Motor / Motion / Ignition Controllers & Drivers DC Motor Driver Bi Directional

product image

FAN8082D Picture
See larger image
SeekIC No. : 00534278 Detail

FAN8082D: Motor / Motion / Ignition Controllers & Drivers DC Motor Driver Bi Directional

FAN8082D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8082D
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Bidirectional DC Motor Driver Operating Supply Voltage : 4 V to 8 V
Mounting Style : SMD/SMT Package / Case : SOP-8
Packaging : Tube

Description

Product :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Type : Bidirectional DC Motor Driver
Package / Case : SOP-8
Operating Supply Voltage : 4 V to 8 V


Features:

• Built-in brake function for stable brake characteristics.
• Built-in element to absorb a surge current derived from changing motor direction and braking motor drive.
• Motor speed control by an external voltage.
• Stable motor direction change.
• Interfaces with CMOS devices.
• Built-in the thermal shut down circuit (165°C).
• Low standby current. (6.5mA)






Application

• Compact disk player (CDP) tray or changer
• Low current DC motor such as audio or video equipment.
• General DC motor

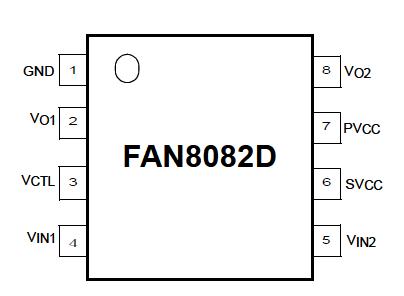

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit Remark
Supply voltage VCCmax 13 V -
Maxium Output current IOmax 0.8note1 A -
Power dissipation Pd 330note2 mW -
Operating temperature TOPR −25 ~ +75 °C -
Storage temperature TSTG −55 ~ +125 °C -
NOTES:
1. Duty 1 / 100, pulse width 500s
2. 1) When mounted on glass epoxy PCB (76.2 * 114 * 1.57mm)
    2) Power dissipation reduces 2.64mW / °C for using above Ta=25°C.
    3) Do not exceed Pd and SOA(Safe Operating Area).


Description

The FAN8082D is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and it is suitable for the loading motor driver of VCR, CDP, and TOY systems. The speed control can be achieved by adjusting the external voltage of the speed control pin. It has two pins of logic inputs for controlling the forward/ reverse and braking.
