IC MOTOR DRIVER 2CH LV 14TSSOP
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Series: | - | Manufacturer: | Fairchild Semiconductor |
Applications: | DC Motor Driver | Evaluation Tools: | - |
Number of Outputs: | 2 | Package / Case : | QFN-16 |
Current - Output: | 1.5A | Voltage - Load: | 1.8 V ~ 9 V |
Voltage - Supply: | 2.2 V ~ 9 V | Operating Temperature: | -20°C ~ 75°C |
Mounting Type: | Surface Mount | Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
Supplier Device Package: | 14-TSSOP |
Parameter | Symbol | Value | Unit |
Maximum logic and control supply voltage | VCC(MAX) | 10.5 | V |
Maximum output supply voltage | PVCC(MAX) | 10.5 | V |
Maximum output applied voltage | VOUT(MAX) | PVCC + VD | V |
Maximum applied input voltage | VIN(MAX) | 10.0 | V |
Maximum D1A Voltage | VD1A(MAX) | PVCCA + 4.5 | V |
Peak output current per channel | IOUT(PEAK) | 1.5(1.2) | A |

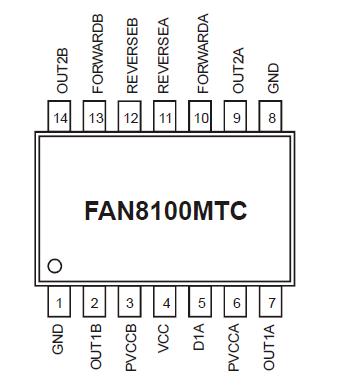

The FAN8100N/FAN8100MTC is a monolithic two channel dc motor drive IC designed for low voltage operated systems. It has dual H-bridge drivers, using NPN and vertical- PNP power transistors with a low saturation voltage. Power packages with heat sinks endure high continuous output current. The high current and low saturation voltage feature make this device suitable for dc motor applications such as toy cars. It has also a built-in thermal shutdown protection circuit with hysteresis.
Technical/Catalog Information | FAN8100MTC |
Vendor | Fairchild Semiconductor |
Category | Integrated Circuits (ICs) |
Applications | DC Motor Driver |
Number of Outputs | 2 |
Voltage - Supply | 2.2 V ~ 9 V |
Voltage - Load | 1.8 V ~ 9 V |
Current - Output | 1.5A |
Operating Temperature | -20°C ~ 75°C |
Package / Case | 14-TSSOP |
Packaging | Tube |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | FAN8100MTC FAN8100MTC |
