FAN8434

Features: Capstan motor drive block• 3-phase, linear BLDC motor driver with 3 hall sensors.• Built-in FG amplifier.• Forward and reverse rotation function.• Built-in amplitude limiter.Drum motor drive block• 3-phase soft commutating sensor less drive method.• Bu...

product image

FAN8434 Picture
See larger image
SeekIC No. : 004340531 Detail

FAN8434: Features: Capstan motor drive block• 3-phase, linear BLDC motor driver with 3 hall sensors.• Built-in FG amplifier.• Forward and reverse rotation function.• Built-in amplitud...

FAN8434 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
FAN8434
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Capstan motor drive block
• 3-phase, linear BLDC motor driver with 3 hall sensors.
• Built-in FG amplifier.
• Forward and reverse rotation function.
• Built-in amplitude limiter.
Drum motor drive block
• 3-phase soft commutating sensor less drive method.
• Built-in FG amplifier.
• Built-in PG amplifier.
Loading motor drive block
• Single phase H-bridge driving method.
• 4-mode selection function(forward, reverse, brake,standby).
Common block
• Built-in TSD(thermal shut down)
• Built-in 4-normal op-amp.

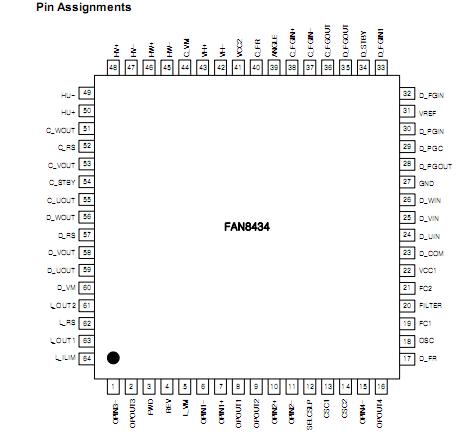

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit Remark
Maximum IC supply voltage 1 VCC1max 7.0 V VCC1 VCC2
Maximum IC supply voltage 2 VCC2max 8.5 V -
Maximum capstan motor supply voltage C_VMmax 7.00 V C_VM VCC2
Maximum drum motor supply voltage D_VMmax 7.0 V D_VM VCC2
Maximum loading motor supply voltage L_VMma 7.0 V L_VM VCC2
Maximum capstan motor output current ICOmax 1.0 A VCC2=7V, C_VM=7V
Maximum drum motor output current IDOmax 1.0 A VCC2=7V, D_VM=7V
Maximum loading motor output current ILOmax 0.6 A VCC2=7V, L_VM=7V
Power dissipation Pd 0.6note1 W Individual
Junction temperature TJ 150 °C VCC2=7V, VM=7V
Operating temperature TOPR −25 ~ +75 °C
Storage temperature TSTG −55 ~ +150 °C



Description

The FAN8434 is a camcorder one-chip motor driver IC. It is composed of capstan motor driver , drum motor driver and loading motor driver.
